PWHP1034BPR
Part of the PWHP Series
Sales Channel: Wholesale
Ordering Code: 7100281
UPC: 098268564525

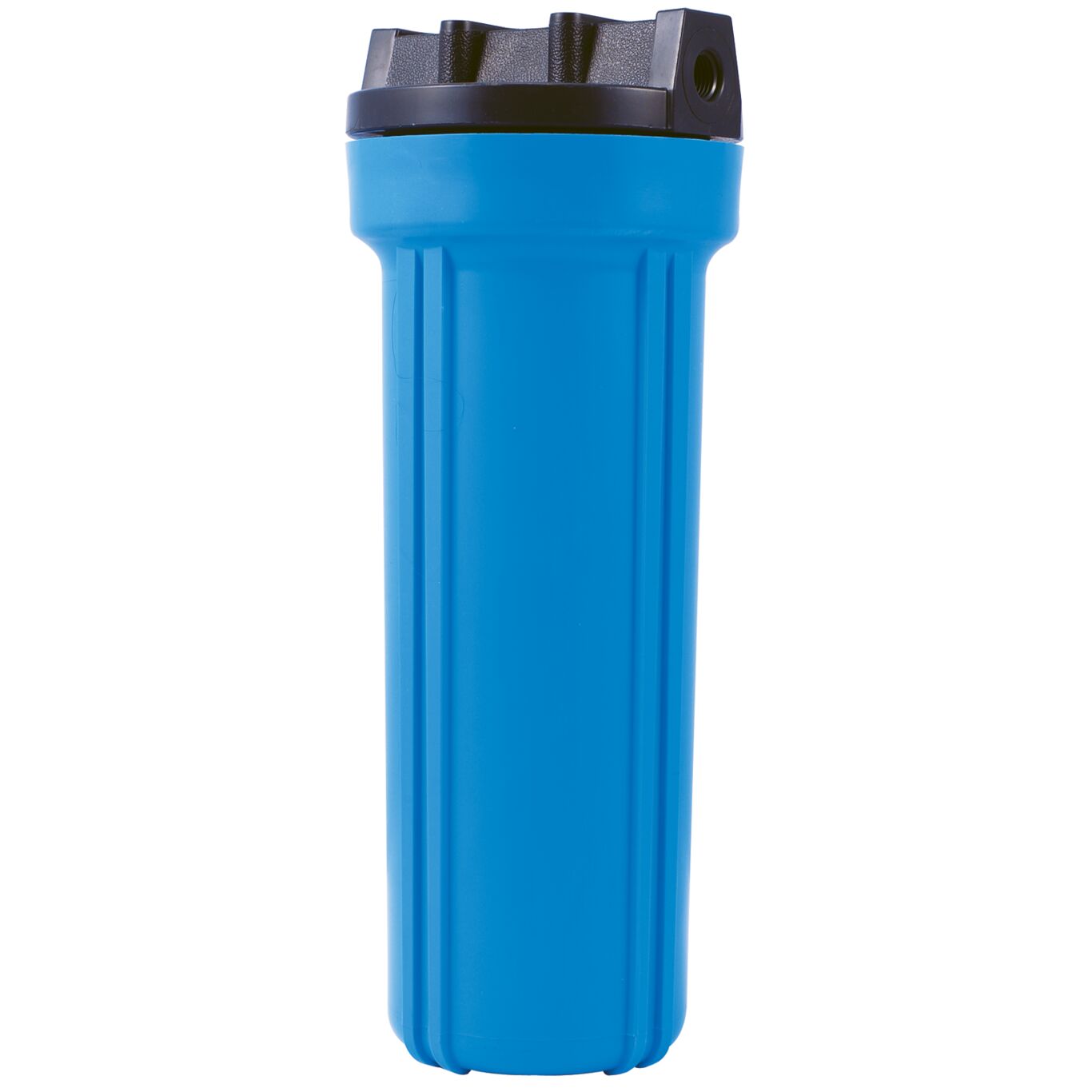

10 IN Blue Housing and Black PR Cap with 3/4 IN Port and Pressure Relief Valve
This 10 inch blue housing with a black cap accepts slim-line filters and allows for easy visual filter inspection. The housing cap features a 3/4 inch NPT pipe size and a pressure relief valve. It is made of a heavy duty construction using high quality FDA grade polypropylene. It has superior chemical resistance from many aggressive chemicals. The housing lid features a buttress thread design for superior sealing and security. The thick side walls are made with heavy-duty ribs to provide greater strength. It is rated at temperatures up to 125 F (52 C) and the water pressure is rated up to 125 psi (8.75 bar). The cap, sump and top-seated O-rings are compressed to provide leak proof sealing.
Specifications | |
---|---|
CAProp65-DevelopRiskSubstance | n-Hexane |
CAProp65-InScope | Yes |
EANUCCCode | 098268564525 |
MaximumTemperature-Fahrenheit | 100 |
MinimumTemperature-Fahrenheit | 40 |
PressureRating-BAR | 6.90 |
PressureRating-PSI | 100 |
