5300A

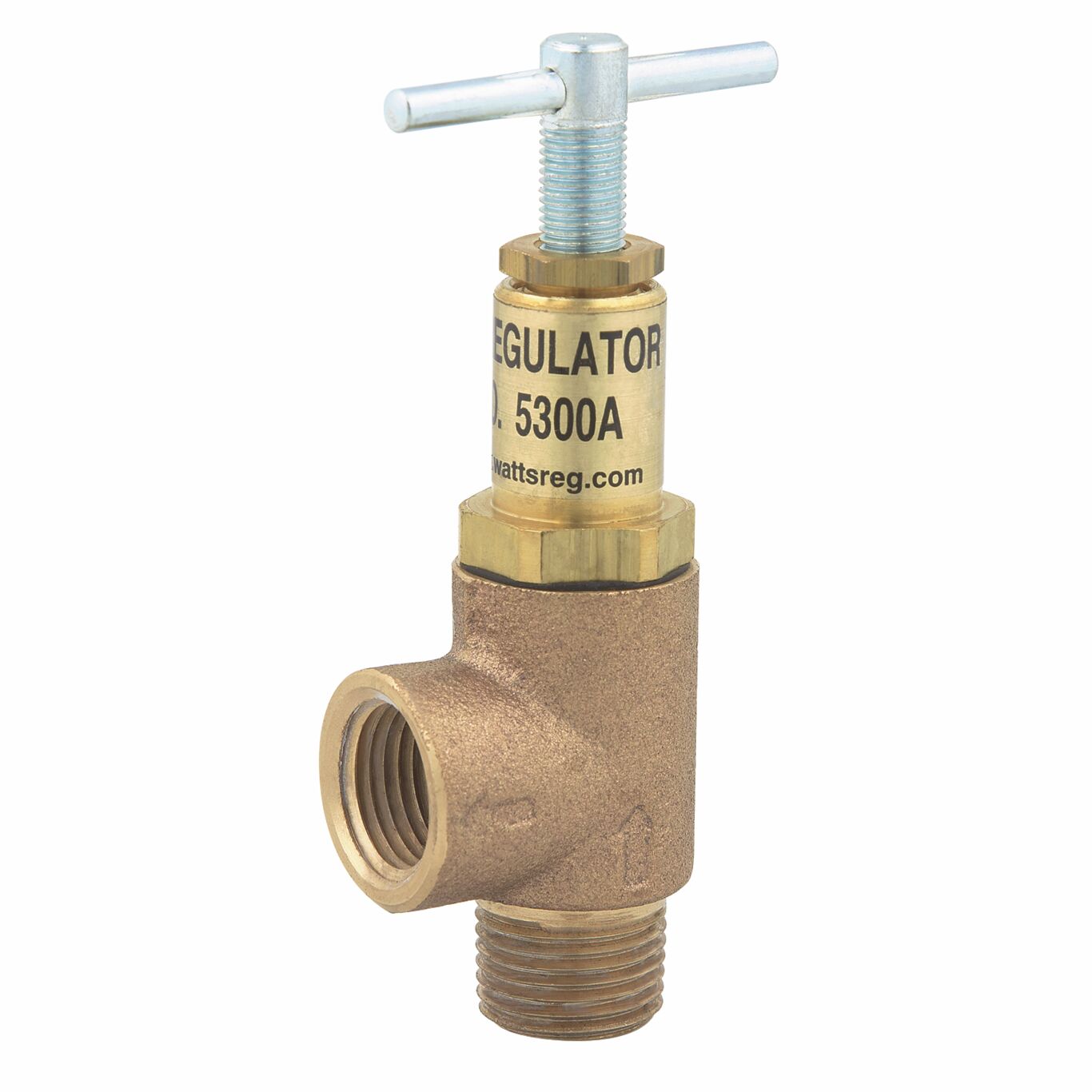

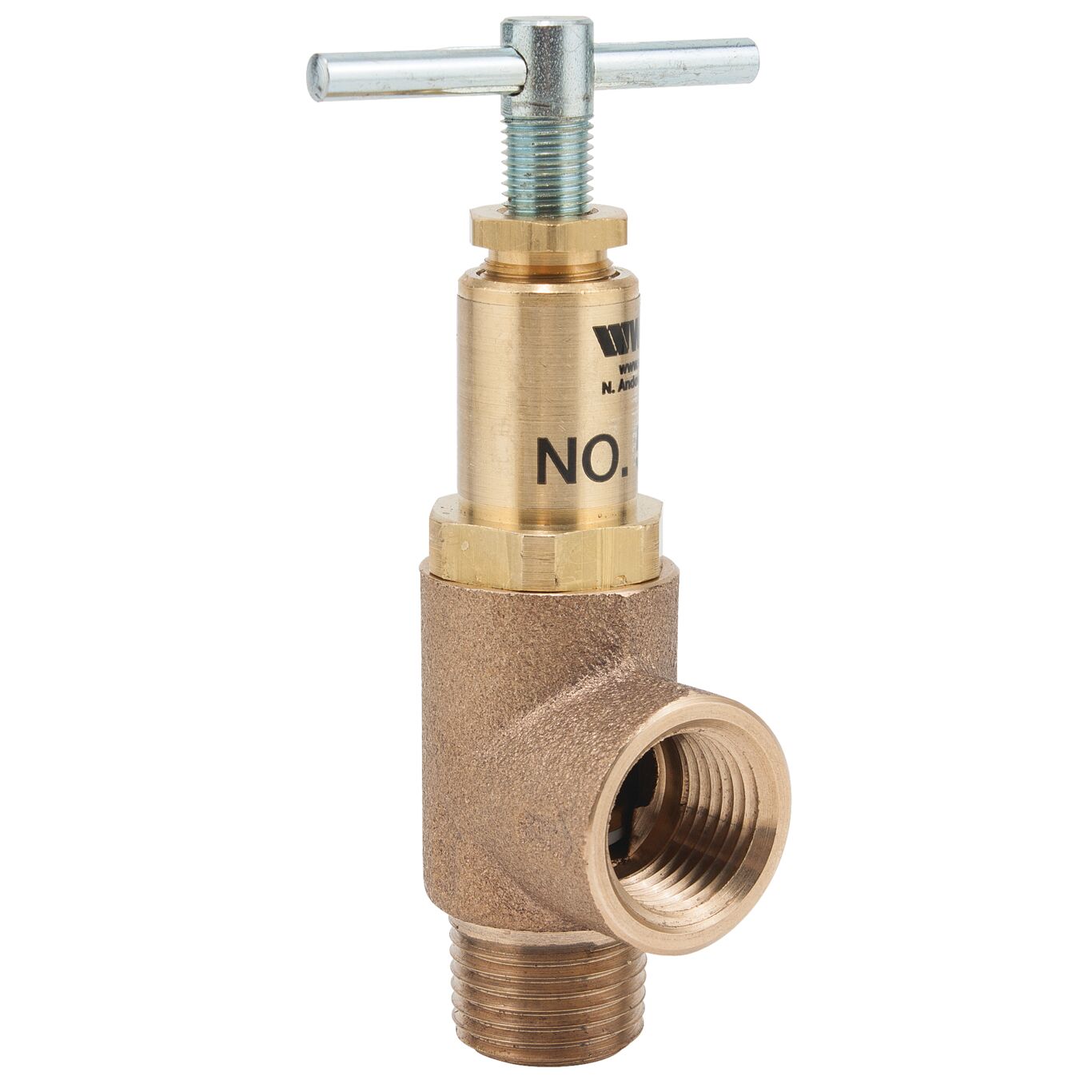

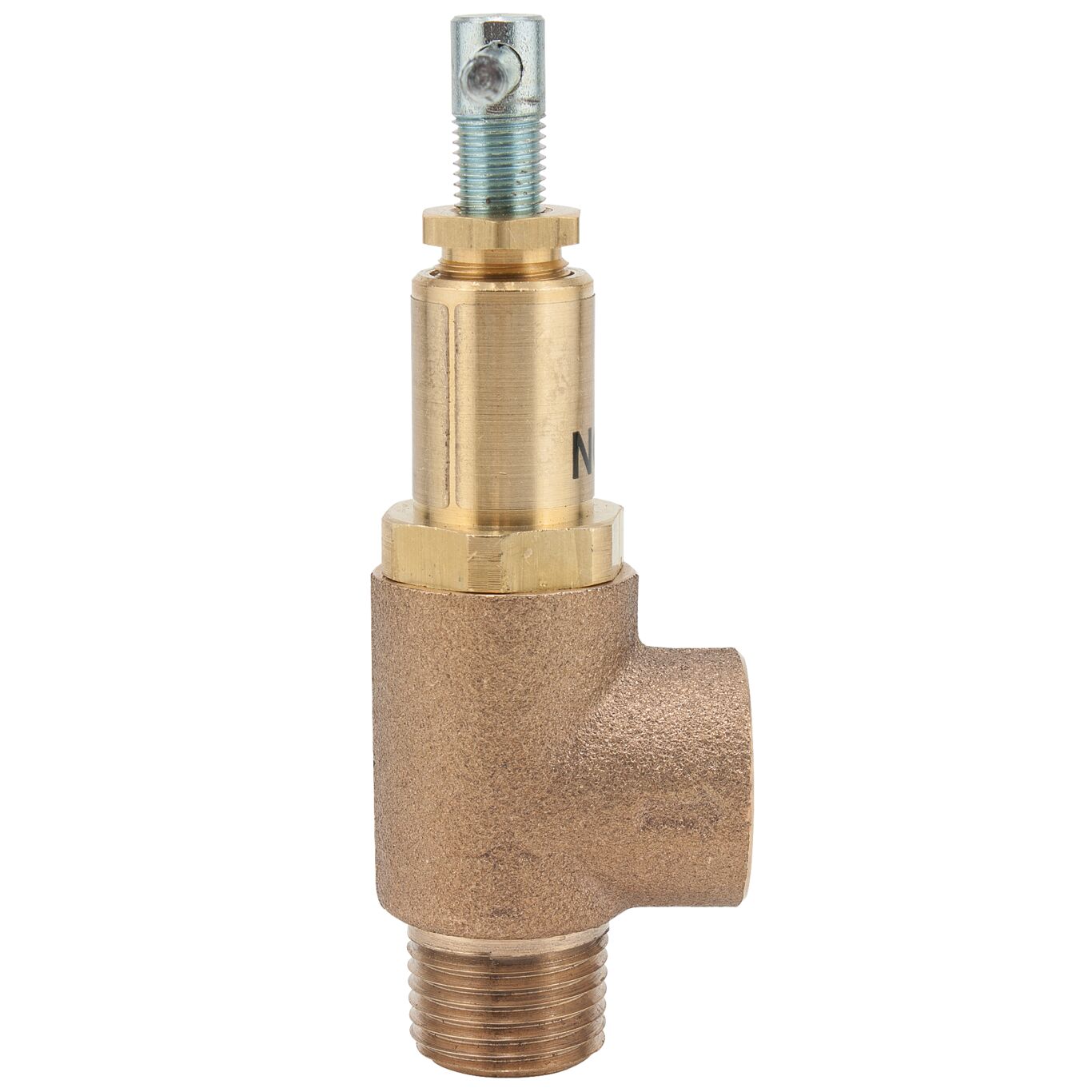

Series 5300A By-Pass Control Relief Valves are used in commercial, residential, and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. These poppet-type compact valves protect equipment by opening at the desired setting to allow excess volume to be by-passed back to the source. Series 5300A consists of a bronze body construction with NPT threaded male inlet and NPT threaded female outlet, Teflon disc, spring and adjustment handle, and a tee handle. Pressure Range: 0 to 250 psi (0 to 17.23 bar).
Features
- Poppet-type compact valve protects equipment by allowing excess volume to be by-passed back to the source
- Bronze body construction for superior strength and corrosion resistance
- Non-sticking Teflon disc assures positive shutoff
- Easy-to-operate tee handle facilitates pressure change
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
