Part of the LFUSG-HWP Series

Ordering Code: 0204150

UPC: 098268285321

Lead Free: YES

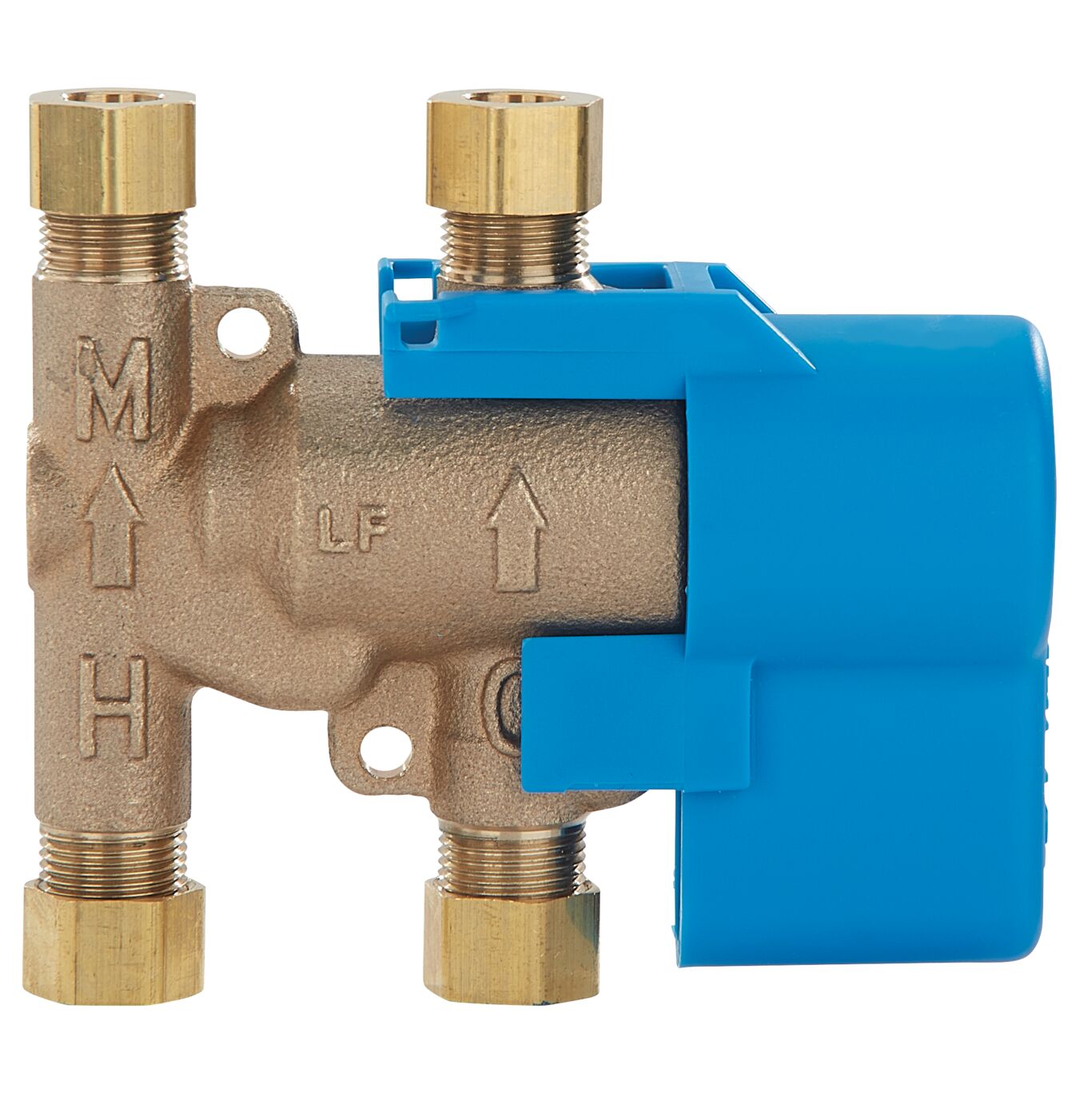

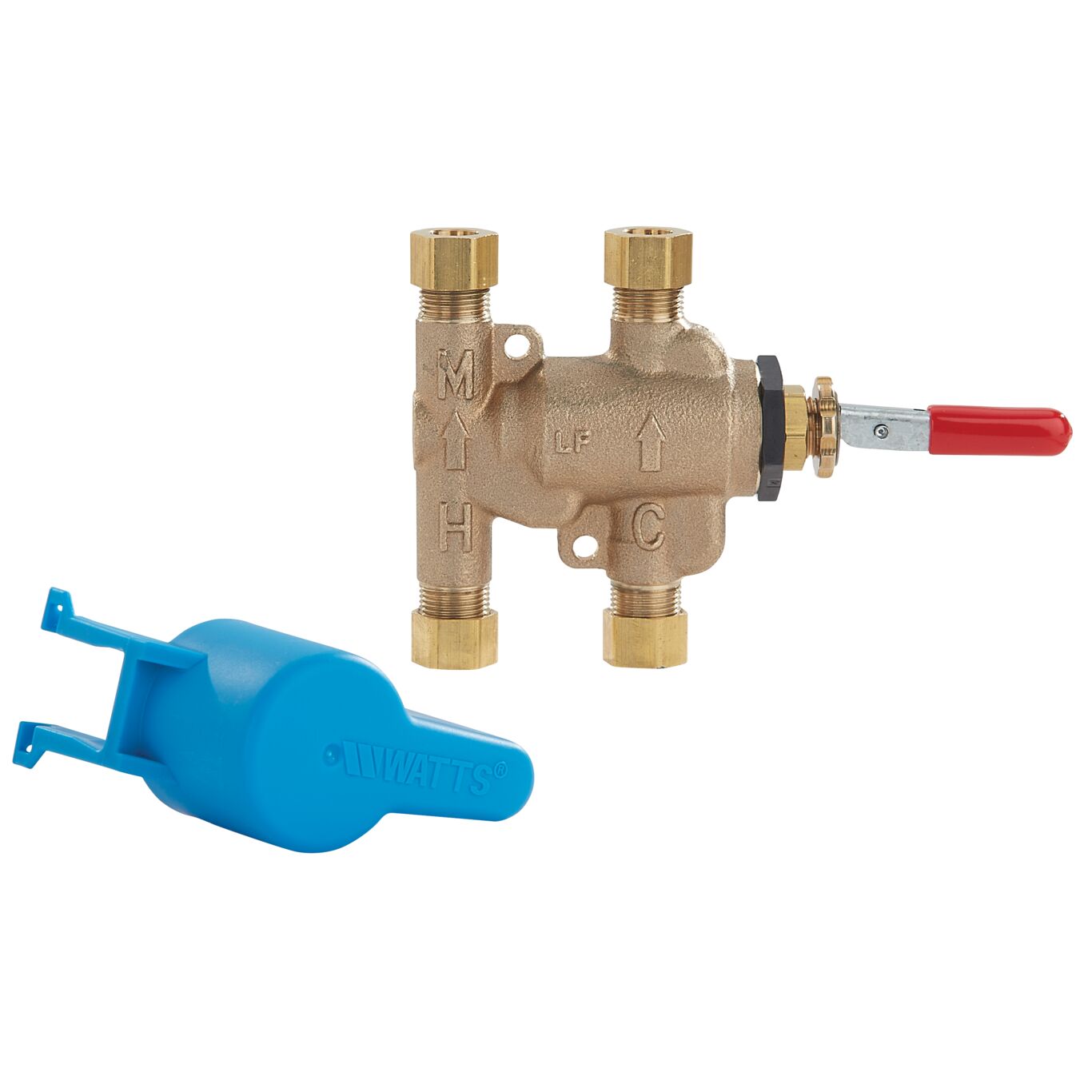

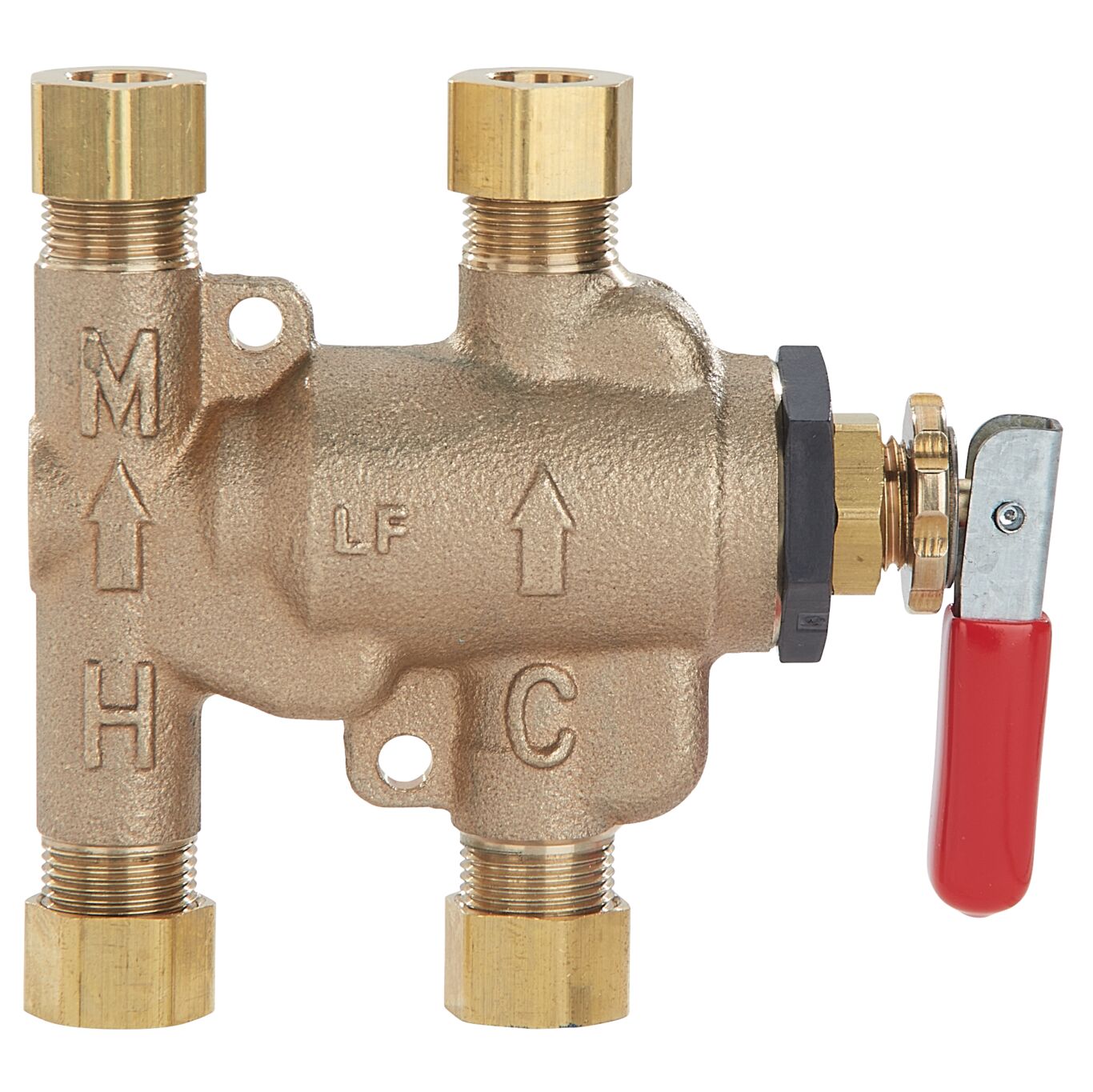

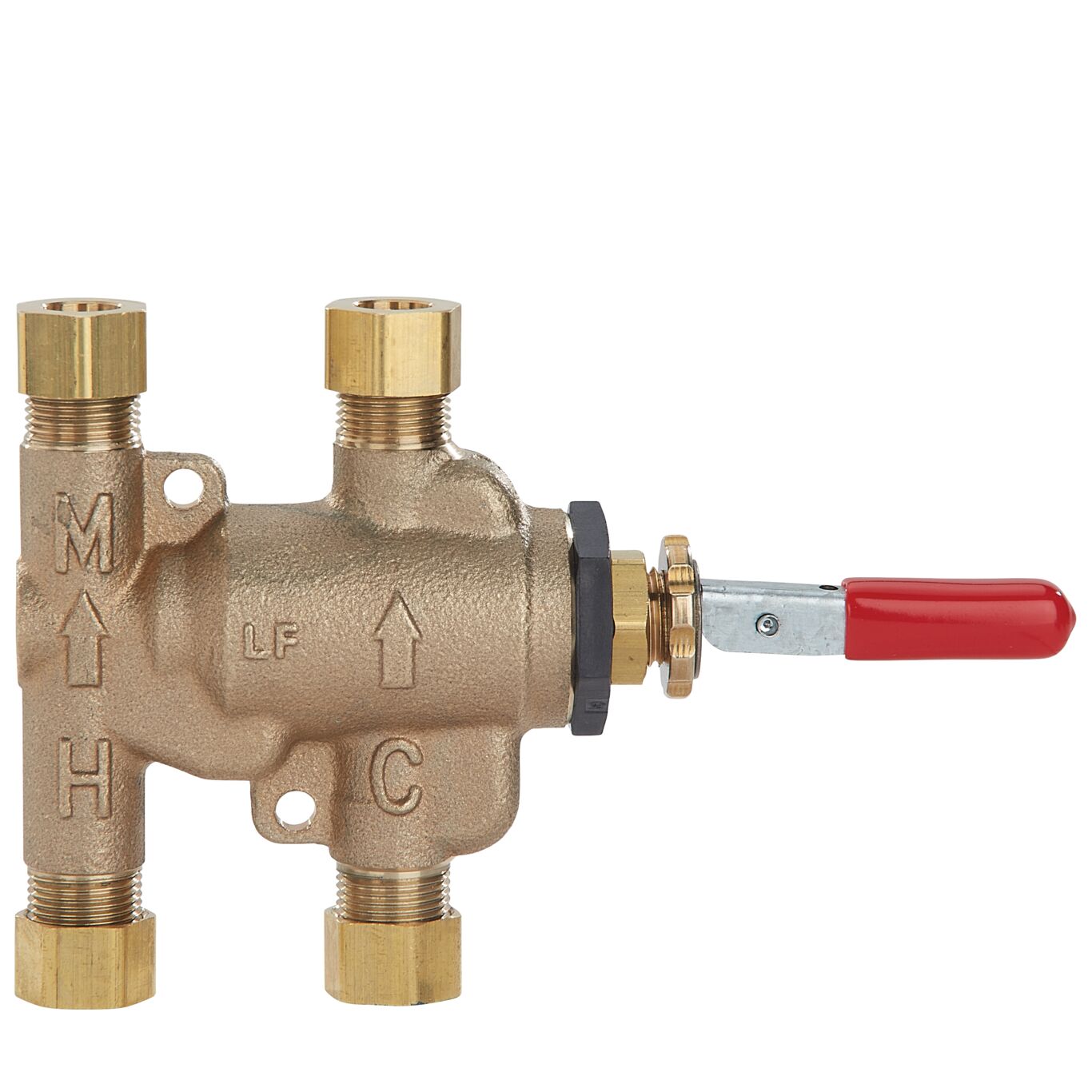

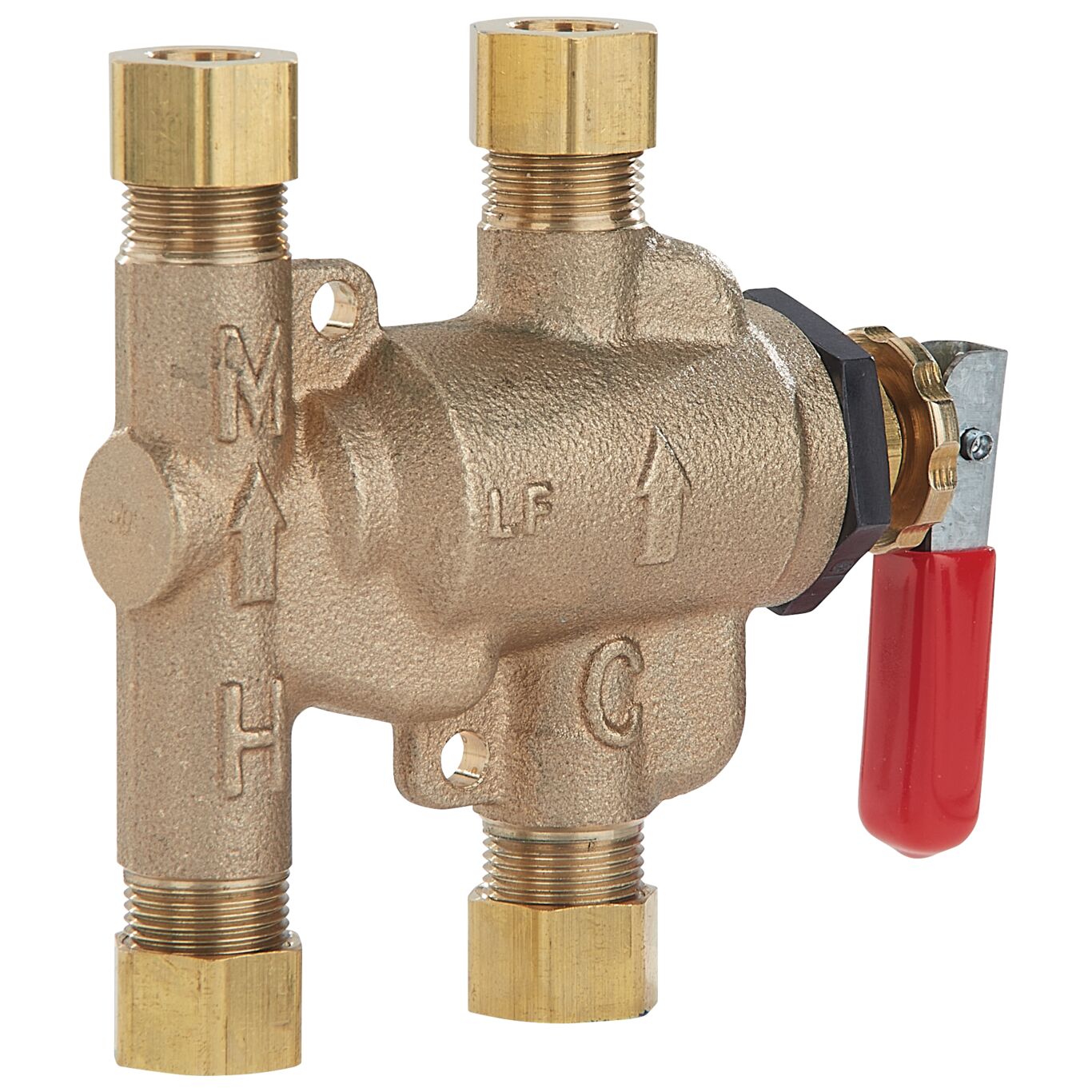

3/8 In Lead Free Thermostatic Mixing Valve, Adjustable 80-120 F, with Sanitizing Purge Lever

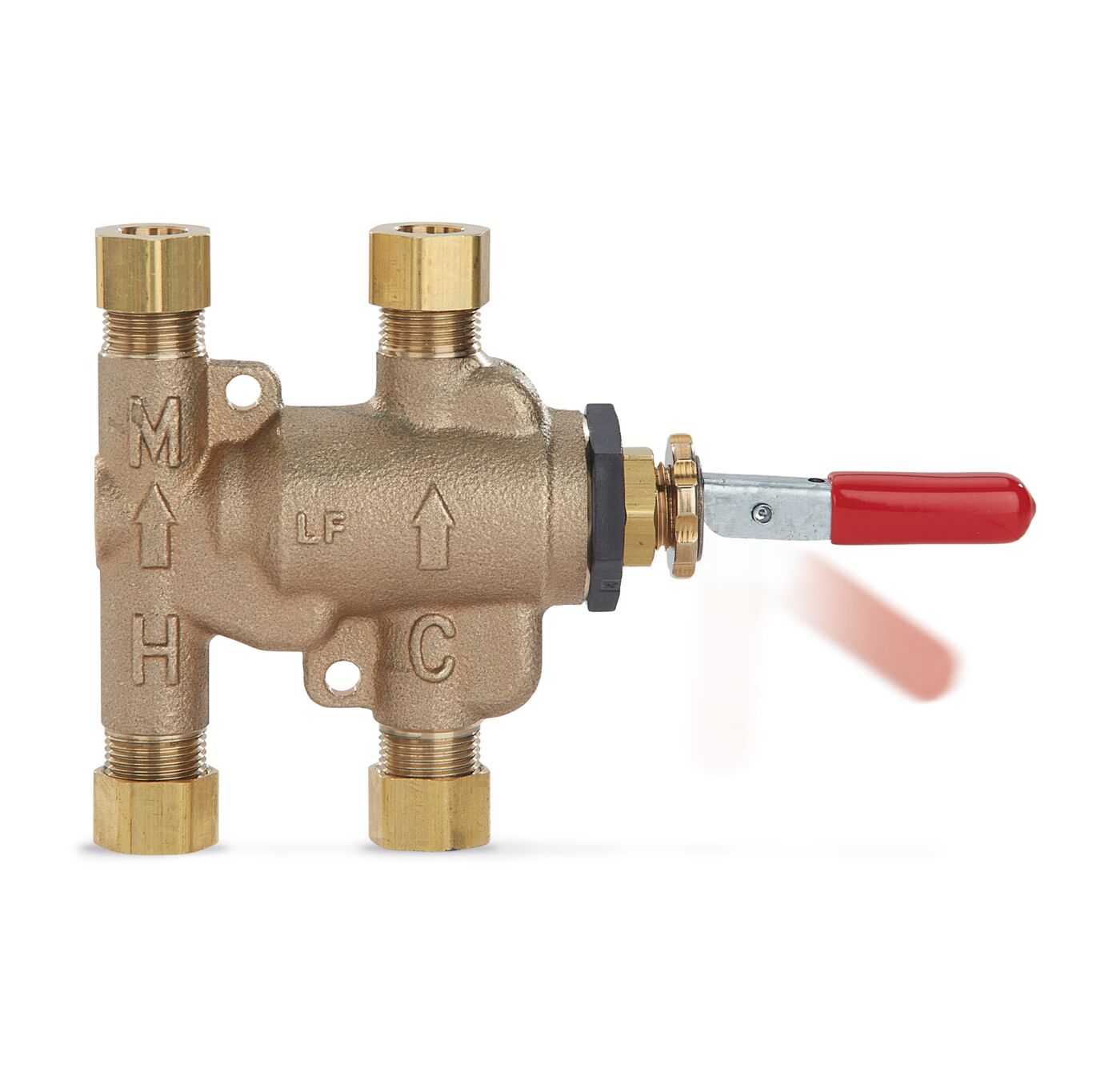

  • Hot water purge lever for sanitization
  • Accurate temperature control with low pressure drop
  • Built-in check valves prevent hot and cold water cross flow
  • ASSE 1070 listed and CSA certified
BodyFinish Rough Bronze
BodyMaterial Lead Free Brass
Brand Watts
Capacity 2.25 GPM
ColdInletTemperatureRange 39 to 80 degree F
ColdWaterBypass No
ColdWaterInletConnectionSize 3/8 IN
ColdWaterInletConnectionType Compression Joint
ColdWaterInletThreadType Does Not Apply To Product
EANUCCCode 098268285321
FactorySetTemperature-Fahrenheit 105
FlowRate 0.25 to 2.25 GPM
HotInletTemperatureRange 120 to 180 degree F
HotWaterInletConnectionSize 3/8 IN
HotWaterInletConnectionType Compression Joint
HotWaterInletThreadType Does Not Apply To Product
LeadFree YES
MaximumPressureDifferential 20 Percent
MaximumWorkingPressure-PSI 150
MinimumDifferentialTemperature-Fahrenheit 5
MinimumStaticPressure-PSI 30
OutletConnectionSize 3/8 IN
OutletConnectionType Compression Joint
OutletTemperatureAccuracy +/- 3 degree F
OutletThreadType Does Not Apply To Product
Part Number 0204150
TemperatureAdjustmentRange 80 to 120 degree F
