CSM-82-F
Ductile Iron Static Balancing Valves, Sizes 1 1/4 - 12 IN
Series CSM‑82‑F static balancing valves are engineered for effective hydronic system balancing in medium‑ to high‑volume flow HVAC applications. Featuring an angled globe valve design, the series allows for precise and repeatable flow adjustment to support accurate system commissioning and long‑term performance. A unique cylindrical plug design provides full flow capability while minimizing pressure drop and reducing operating torque.

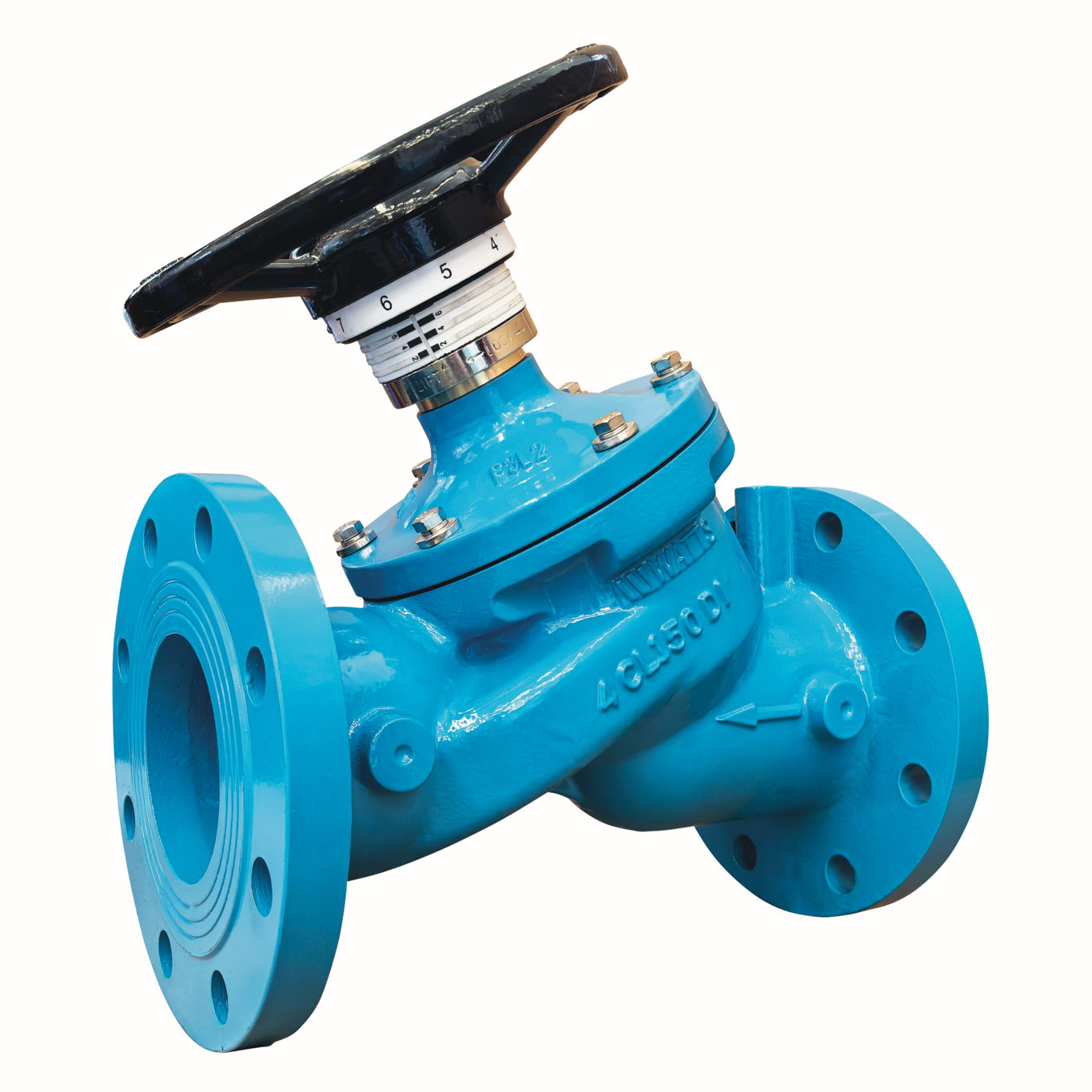

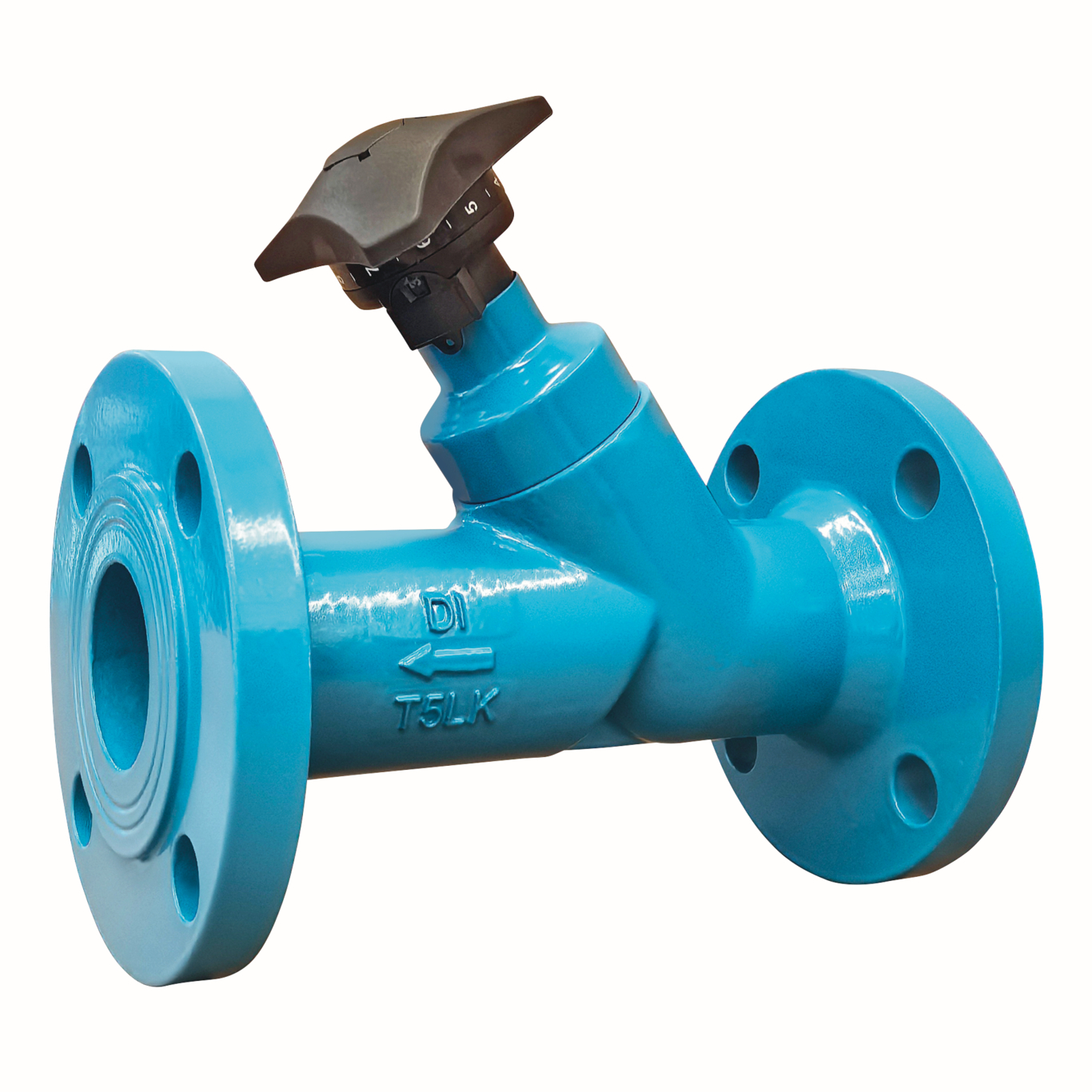

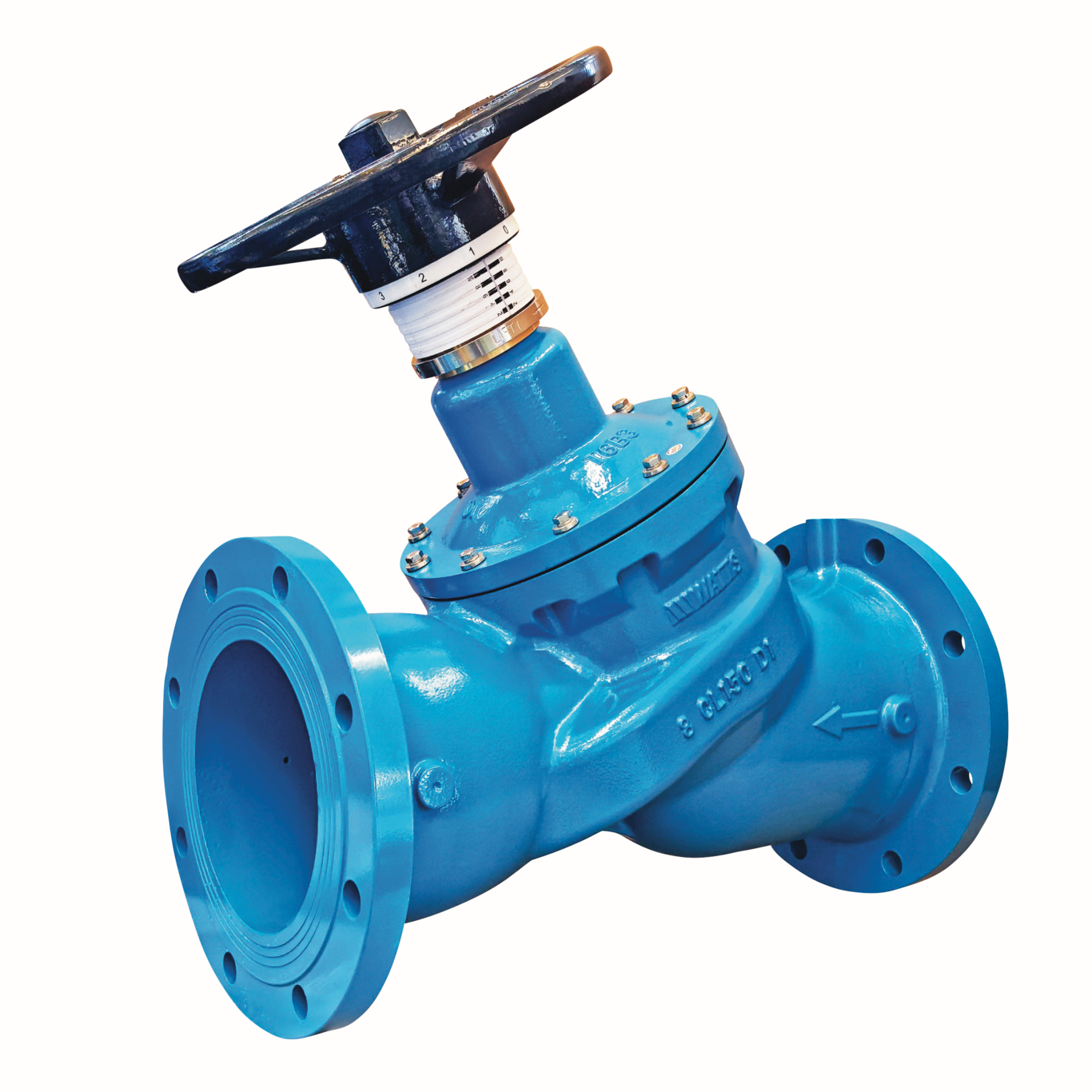

Models in 1‑1/4 to 2 inch sizes are equipped with a cross‑handle shutoff for compact operation and easy adjustment, while models in 2‑1/2 to 12 inch sizes feature a handwheel shutoff designed for smooth operation and positive control. Both shutoff options improve accessibility and ease of use during installation, balancing, and maintenance.
Constructed with a durable ductile iron body, CSM‑82‑F valves are built for long service life in demanding HVAC environments. Easily accessible pressure monitoring ports with drip caps simplify flow measurement and system diagnostics. Each valve also provides positive shut‑off functionality, eliminating the need for a separate service valve.
Features
- Angled globe valve design enables precise and stable flow control for accurate system balancing
- Cylindrical plug design delivers full flow with minimal pressure drop and low operating torque
- Ergonomic handwheel allows for easy adjustment and positive shut‑off
- Ductile iron body construction ensures durability and long service life
- Integrated pressure monitoring ports with drip caps support efficient flow measurement and commissioning
- Positive shut‑off capability eliminates the need for a separate service valve
- Broad size range (1‑1/4 to 12 IN) supports medium to high volume HVAC applications
