CAN16125BPQ2SR60
Discontinued
Part of the Blue Hose Series
Ordering Code: 0243000
UPC: 662447082416

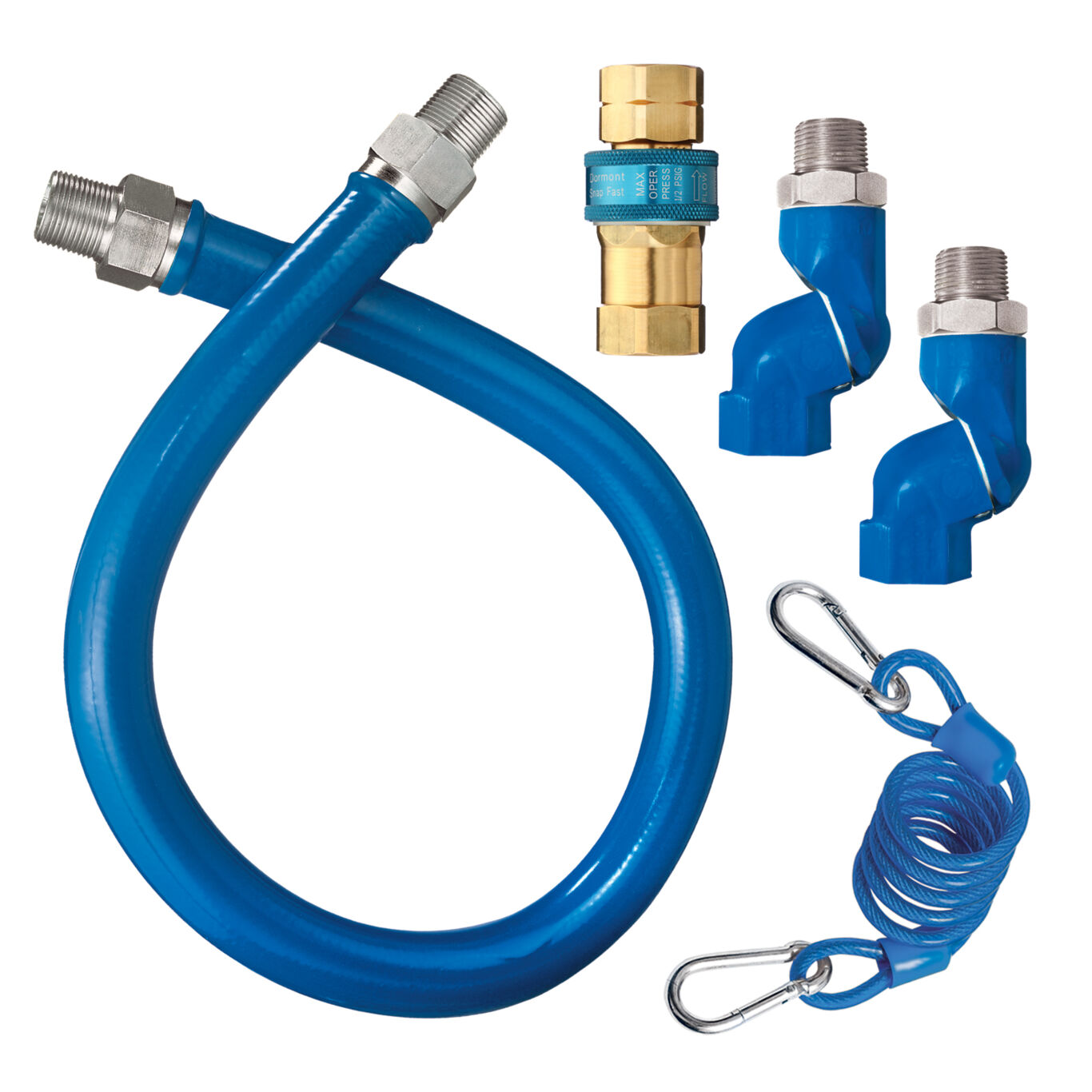

1 1/4 IN ID, 60 IN Length, Stainless Steel Moveable Gas Connector, SS Braided, PVC Coated, QD, 2 Swivels, RDC, Canada
This 1 1/4 inch ID by 60 inch long moveable grade gas connector is composed of a 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. The outside hose coating is an antimicrobial PVC coating that inhibits growth of bacteria, mold and mildew on the connector. The rotational technology fittings on both ends of the connector rotate 360 degrees, greatly reducing stress at both connector ends. The push to connect quick disconnect is designed specifically for the foodservice industry and contains a thermal shutoff feature. Swivels provide 360 degrees of multi-plane movement, which maximizes equipment mobility and usable kitchen space. Restraining device and mounting hardware are also included.
Specifications | |
---|---|
ConnectorCoating | Blue PVC Coating |
ConnectorInnerDiameter | 1 1/4 IN |
ConnectorLength | 60 IN |
ConnectorMaterial | Stainless Steel |
DesignCertification | CSA certified to ANSI Z21.69/CSA 6.16; NSF listed to NSF/ANSI 169; CSA certified to ANSI Z21.41/CSA 6.9; CSA certified to ANSI/UL 567 |
MaximumWorkingPressure-PSI | 0 |
ProductMarketApplication | Foodservice |
