LF3004-GB 3/4
Part of the LF3004 Series
Ordering Code: 0124303
UPC: 098268827392

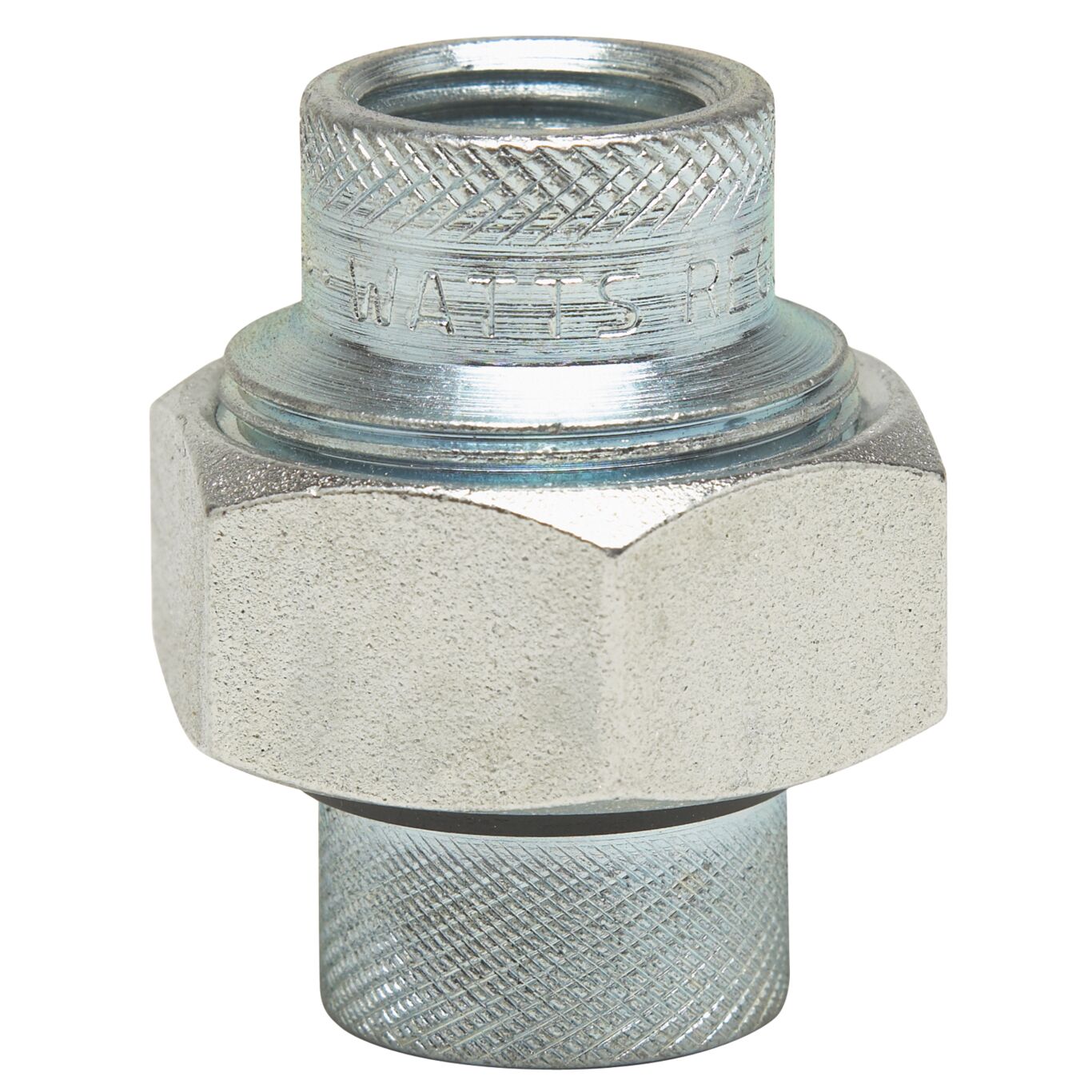

3/4 In Lead Free Dielectric Union with EPDM Gaskets, Female Iron Pipe Thread To Female Iron Pipe Thread Galvanized Connections
This 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a FIP thread to FIP thread (galvanized) connections, union nut, two tailpieces, and an EPDM gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 300 degrees F (149 degrees C) at 50 psi (3.4 bar).
| Specifications | |
|---|---|
| EANUCCCode | 098268827392 |
| GasketMaximumPressure-BAR | 3.40 |
| MaximumWorkingPressure-PSI | 50 |
| MaximumWorkingTemperature-Fahrenheit | 300 |
| Type | Kit |
