3520-1013
×
![]()
Part of the Female Swivel Elbow 3520 Series
Ordering Code: 0959093
UPC: 098268299441

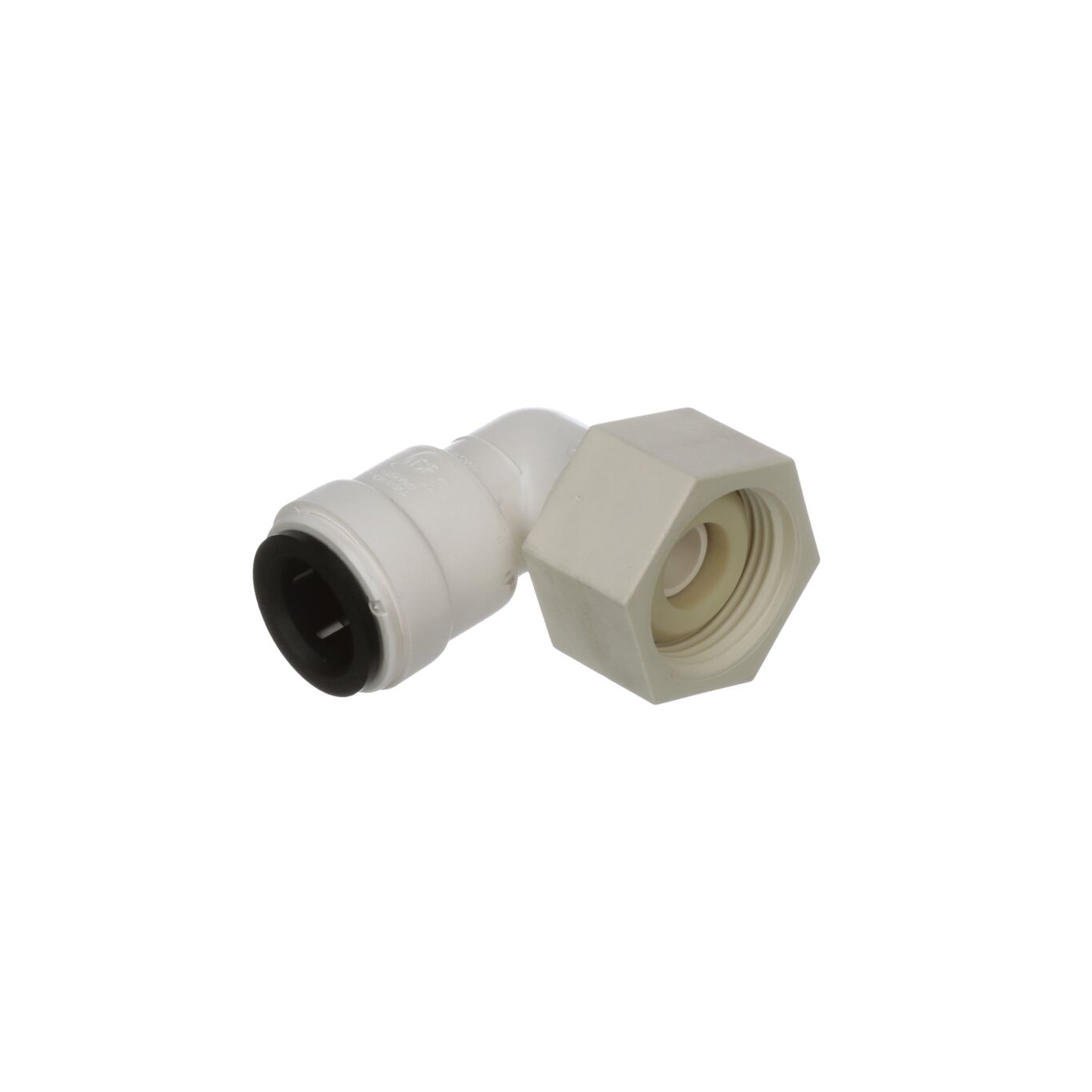

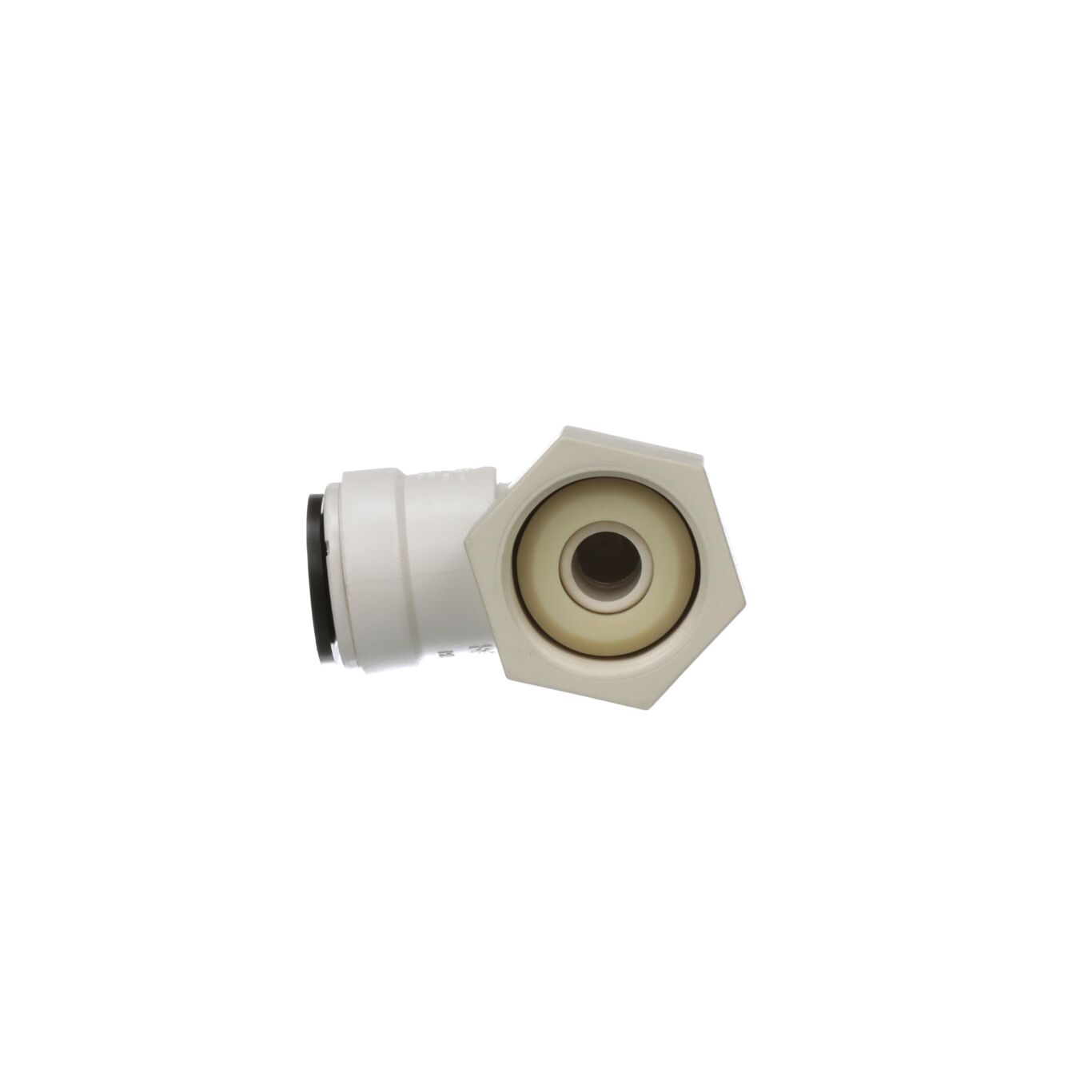

1/2 IN CTS x 7/8 IN BC Plastic Female Swivel Elbow
This 1/2 inch CTS x 7/8 inch BC AquaLock(TM) plastic female swivel elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Ideal for DIY pipe repair or installation, including hot and cold water, underground and behind-the-wall-without-access plumbing systems
- Fast and easy to install; Simply push to connect, with no need for tools or for pipe inserts on copper and CPVC pipes
- Made of high-quality plastic and stainless steel for zero-leak connection, corrosion resistance and long-lasting wear
- One-piece construction means no parts to assemble
- Among the easiest tools on the market for joining copper, polybutylene, CPVC and PEX (LDPE, MDPE, HDPE) tubing
| Specifications | |
|---|---|
| EANUCCCode | 098268299441 |
| MaximumWorkingPressure-BAR | 17.25 |
| MaximumWorkingPressure-PSI | 250 |
| MaximumWorkingTemperature-Celsius | 24.00 |
| MaximumWorkingTemperature-Fahrenheit | 75 |
| MinimumTemperature-Celsius | 0.56 |
| MinimumTemperature-Fahrenheit | 33 |
| OutletConnectionType | Does Not Apply To Product |
