3520-0808
×
![]()
Part of the Female Swivel Elbow 3520 Series
Ordering Code: 0959037
UPC: 098268298611

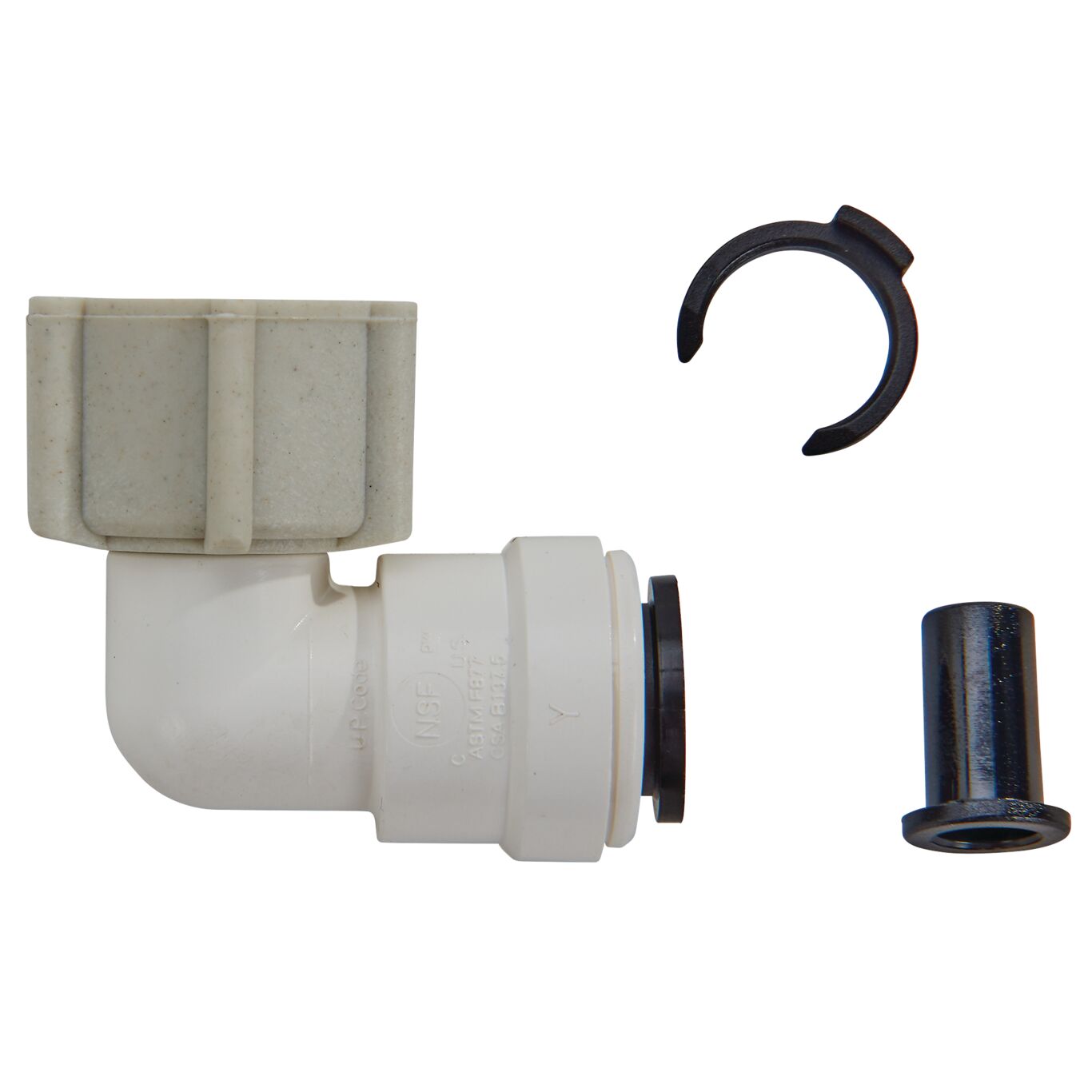

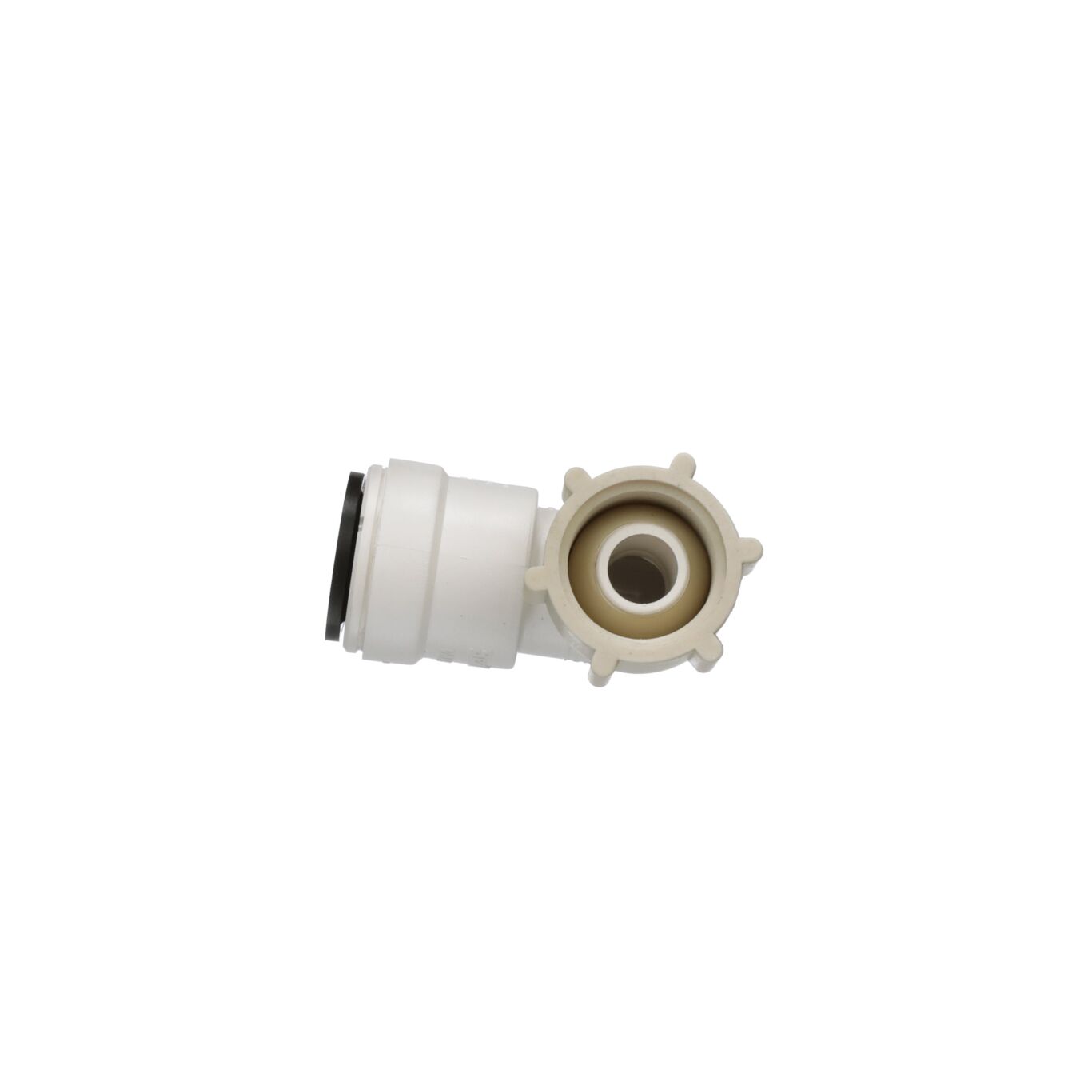

3/8 IN CTS x 1/2 IN NPS Plastic Female Swivel Elbow
This 3/8 inch CTS x 1/2 inch NPS AquaLock(TM) plastic female swivel elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Ideal for DIY pipe repair or installation, including plumbing for potable, hot and cold water and behind-the-wall and direct in-ground burial water systems
- Fast and easy to install; Simply push to connect, with no need for tools or tube inserts
- High-quality plastic offers corrosion resistance and long-lasting wear
- One-piece construction means no parts to assemble
- Among the easiest tools on the market for joining polybutylene, copper, CPVC and PEX (LDPE, MDPE, HDPE) tubing
| Specifications | |
|---|---|
| EANUCCCode | 098268298611 |
| MaximumWorkingPressure-BAR | 17.25 |
| MaximumWorkingPressure-PSI | 250 |
| MaximumWorkingTemperature-Celsius | 24.00 |
| MaximumWorkingTemperature-Fahrenheit | 75 |
| MinimumTemperature-Celsius | 0.56 |
| MinimumTemperature-Fahrenheit | 33 |
