3517-08
Part of the Elbow 3517 Series
Ordering Code: 0959035
UPC: 098268298598

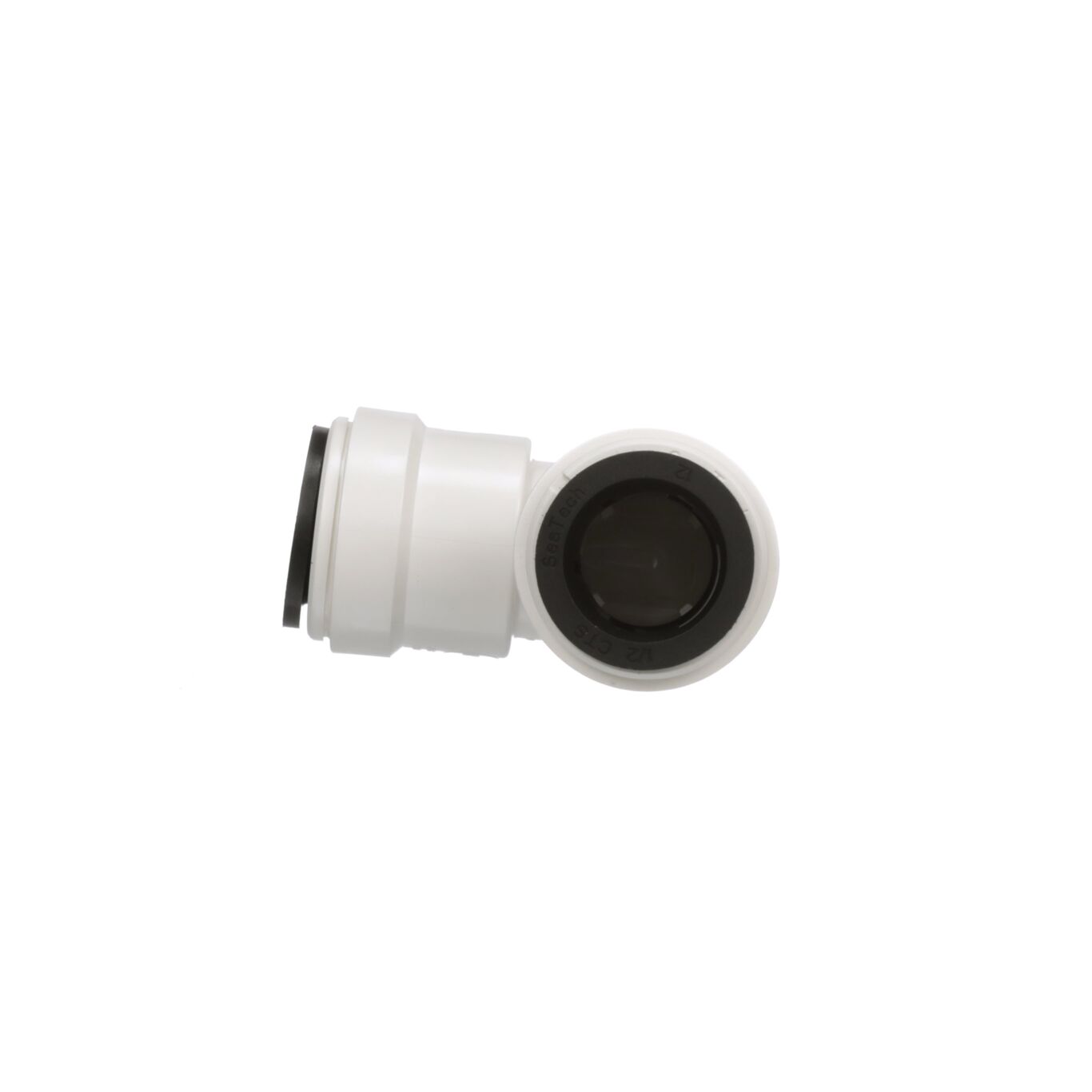

3/8 IN CTS Plastic Elbow
This 3/8 inch CTS AquaLock(TM) plastic elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing.
- No tools required for installation or removal.
- Zero-leak connections.
- Can be used for hot and cold water applications, including behind the wall applications.
- Rotates under pressure.
Specifications | |
---|---|
EANUCCCode | 098268298598 |
MaximumWorkingPressure-BAR | 17.25 |
MaximumWorkingPressure-PSI | 250 |
MaximumWorkingTemperature-Celsius | 24.00 |
MaximumWorkingTemperature-Fahrenheit | 75 |
MinimumTemperature-Celsius | 0.56 |
MinimumTemperature-Fahrenheit | 33 |
