3501-1412
Part of the Male Adapter 3501 Series
Ordering Code: 0959136
UPC: 098268299892

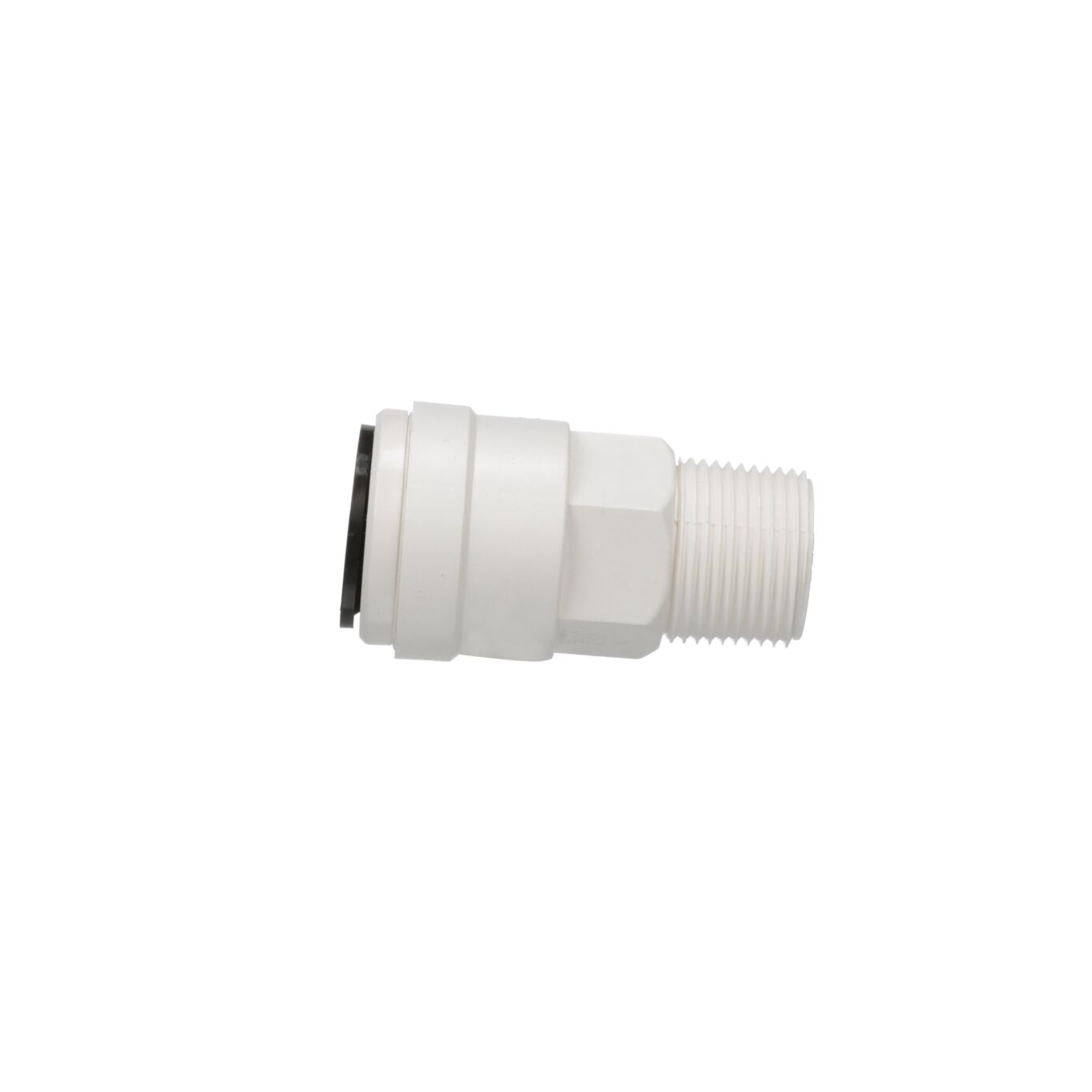

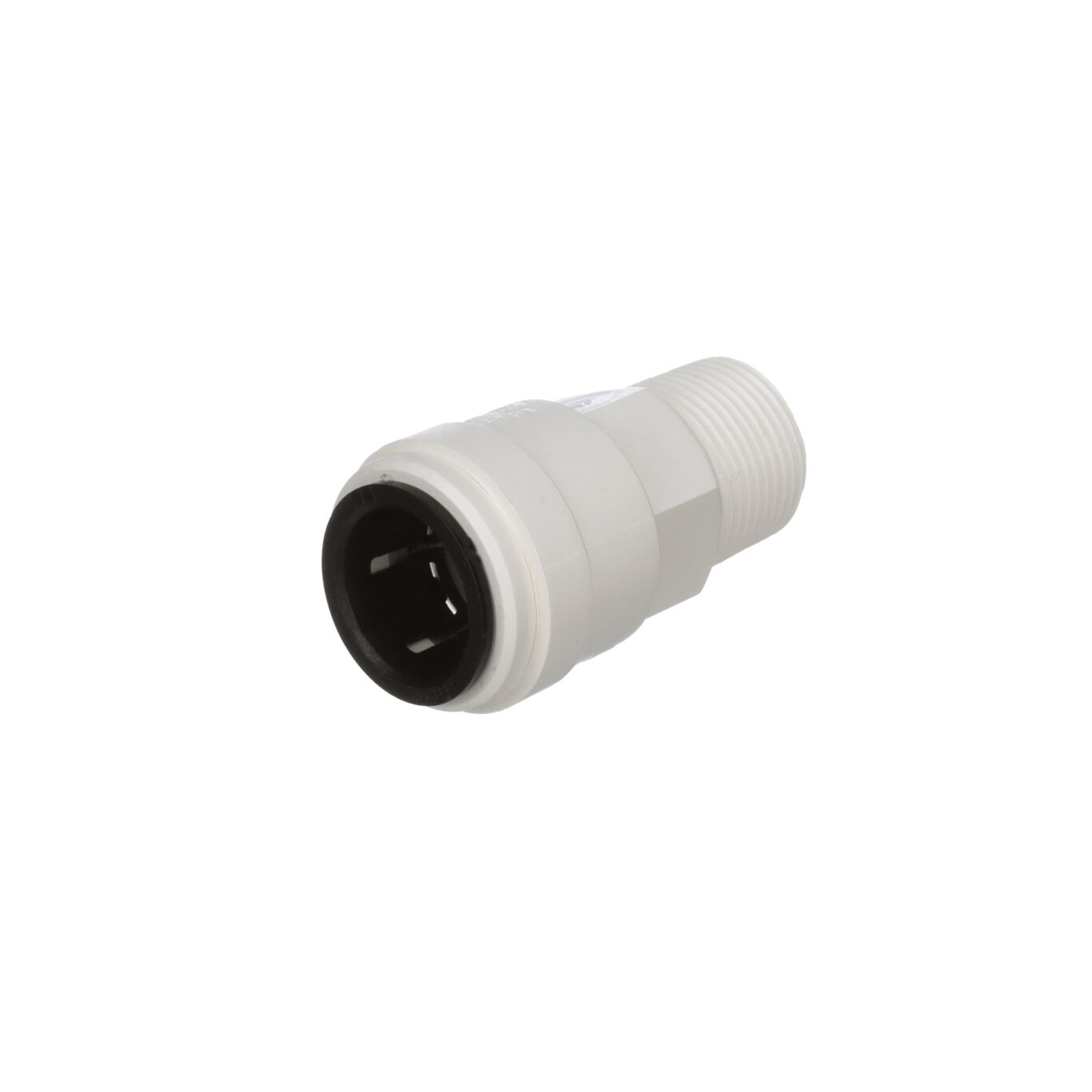

3/4 IN CTS x 3/4 IN NPT Plastic Male Adapter
This 3/4 inch CTS x 3/4 inch NPT AquaLock(TM) plastic male adapter works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Plastic quick connect male adapter 3/4-Inch male pipe thread by 3/4-Inch CTS.
- Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing.
- No tools required for installation or removal.
- Zero-leak connections.
- Can be used for hot and cold water applications, including behind the wall applications.
- Rotates under pressure.
Specifications | |
---|---|
EANUCCCode | 098268299892 |
MaximumWorkingPressure-BAR | 17.25 |
MaximumWorkingPressure-PSI | 250 |
MaximumWorkingTemperature-Celsius | 24.00 |
MaximumWorkingTemperature-Fahrenheit | 75 |
MinimumTemperature-Celsius | 0.56 |
MinimumTemperature-Fahrenheit | 33 |
