1010-0404
Part of the Female Adapter 1010 Series
Ordering Code: 17103060
UPC: 048643236165

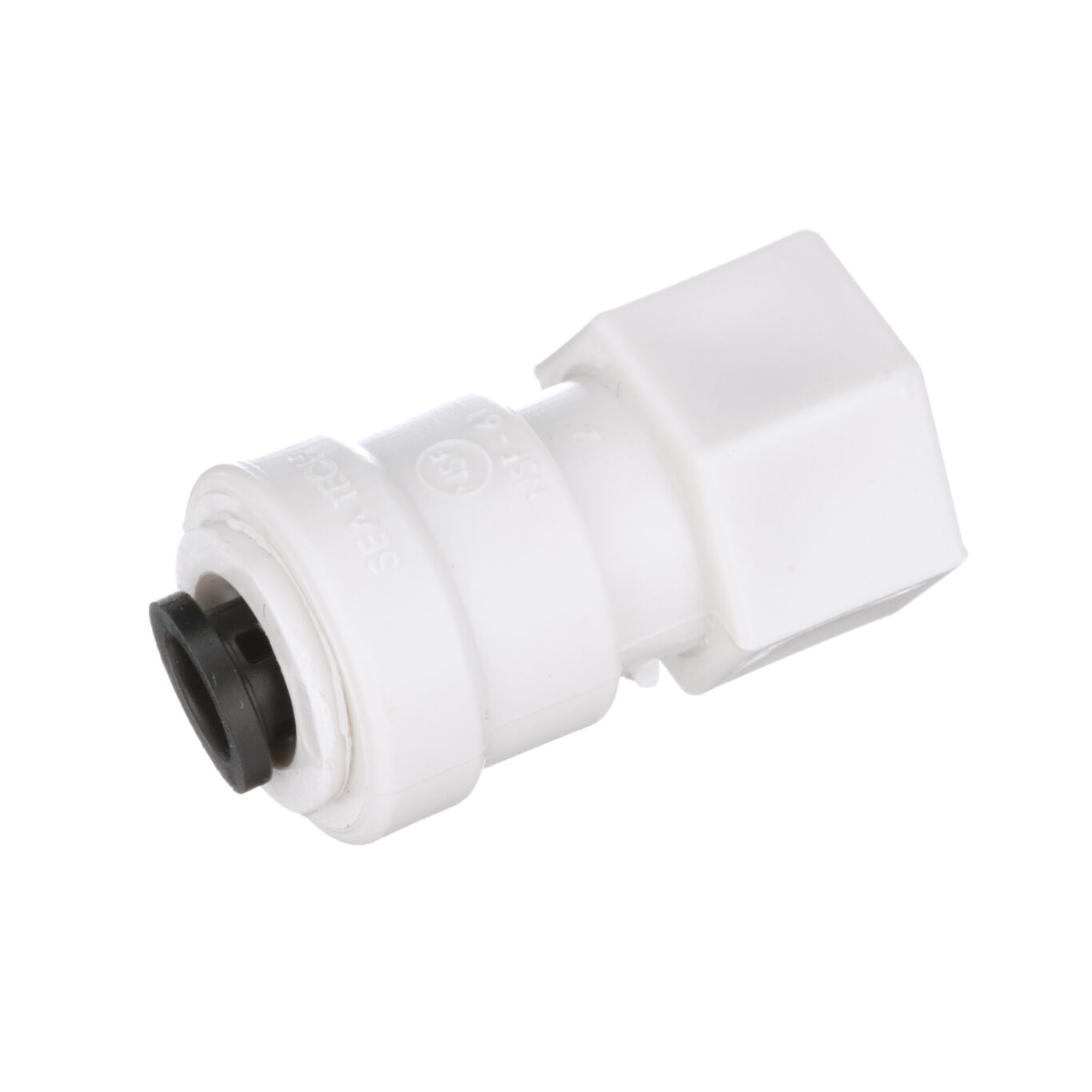

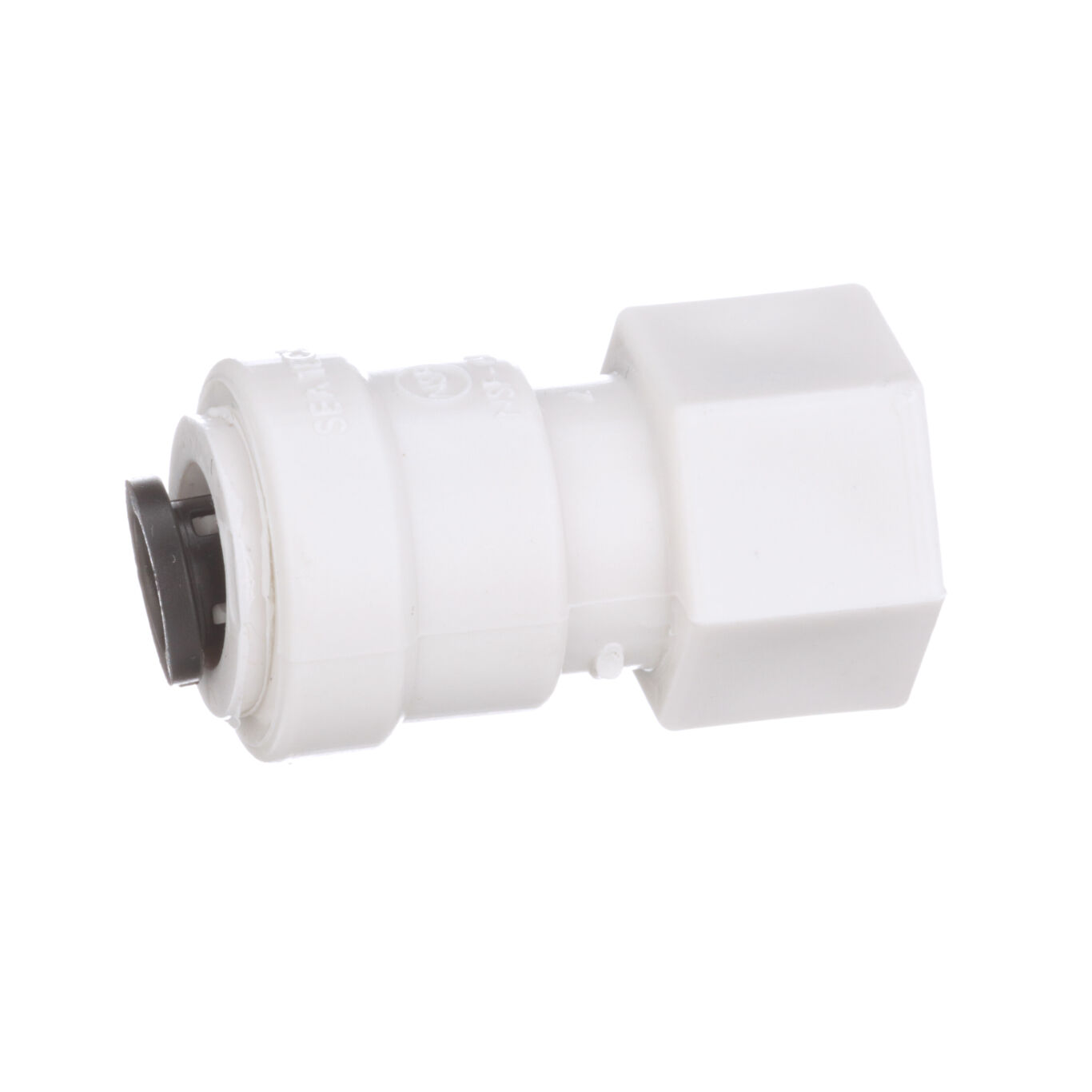

1/4 IN OD x 1/4 IN FNPT Mini Female Adapter
This 1/4 inch OD x 1/4 inch FNPT AquaLock(TM) mini female adapter works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Ideal for DIY pipe repair or installation involving low-pressure fluids, including potable, hot and cold water and behind-the-wall applications.
- Fast and easy to install; Simply push to connect, with no need for pipe stiffeners for copper and CPVC pipes
- High-performance plastic offers corrosion resistance and long-lasting wear
- One-piece construction means no parts to assemble
- Among the easiest tools on the market for joining polybutylene, PEX or soft copper tubing
Specifications | |
---|---|
EANUCCCode | 048643236165 |
MaximumWorkingPressure-BAR | 10.30 |
MaximumWorkingPressure-PSI | 150 |
MaximumWorkingTemperature-Celsius | 60.00 |
MaximumWorkingTemperature-Fahrenheit | 140 |
MinimumTemperature-Celsius | 0.50 |
MinimumTemperature-Fahrenheit | 33 |
