1015-04
×
![]()
Part of the Coupling 1015 Series
Ordering Code: 17103000
UPC: 048643197596

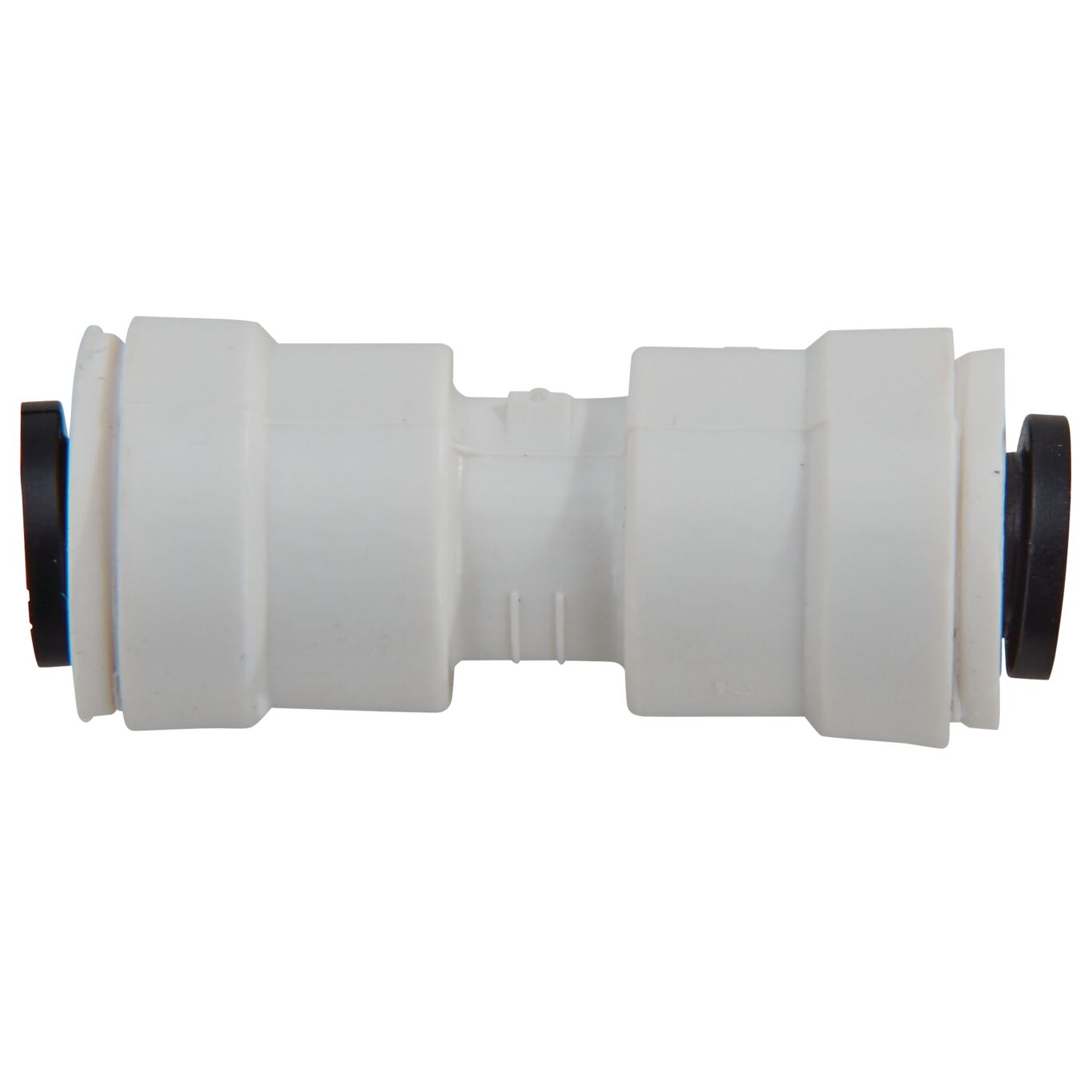

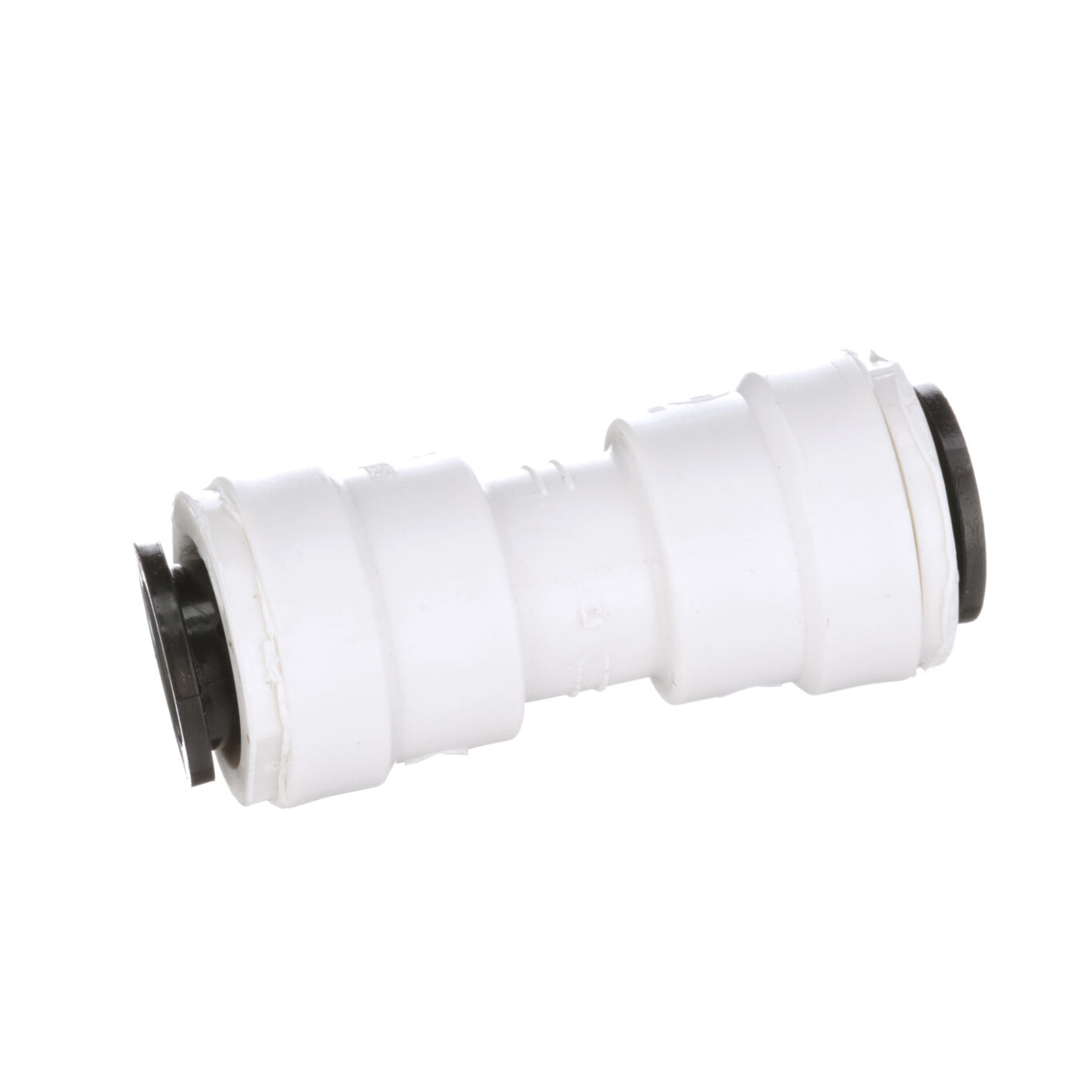

1/4 IN OD Mini Coupling
This 1/4 inch OD AquaLock(TM) mini coupling works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Works with polyethylene, PEX, or soft copper tube.
- No tools required for installation or removal.
- Zero-leak connections.
- Can be used for hot and cold water applications.
- Rotates under pressure.
| Specifications | |
|---|---|
| EANUCCCode | 048643197596 |
| MaximumWorkingPressure-BAR | 10.30 |
| MaximumWorkingPressure-PSI | 150 |
| MaximumWorkingTemperature-Celsius | 60.00 |
| MaximumWorkingTemperature-Fahrenheit | 140 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
