LF601S 1/2
×
![]()
Part of the LF601 Series
Ordering Code: 0555181
UPC: 098268432916

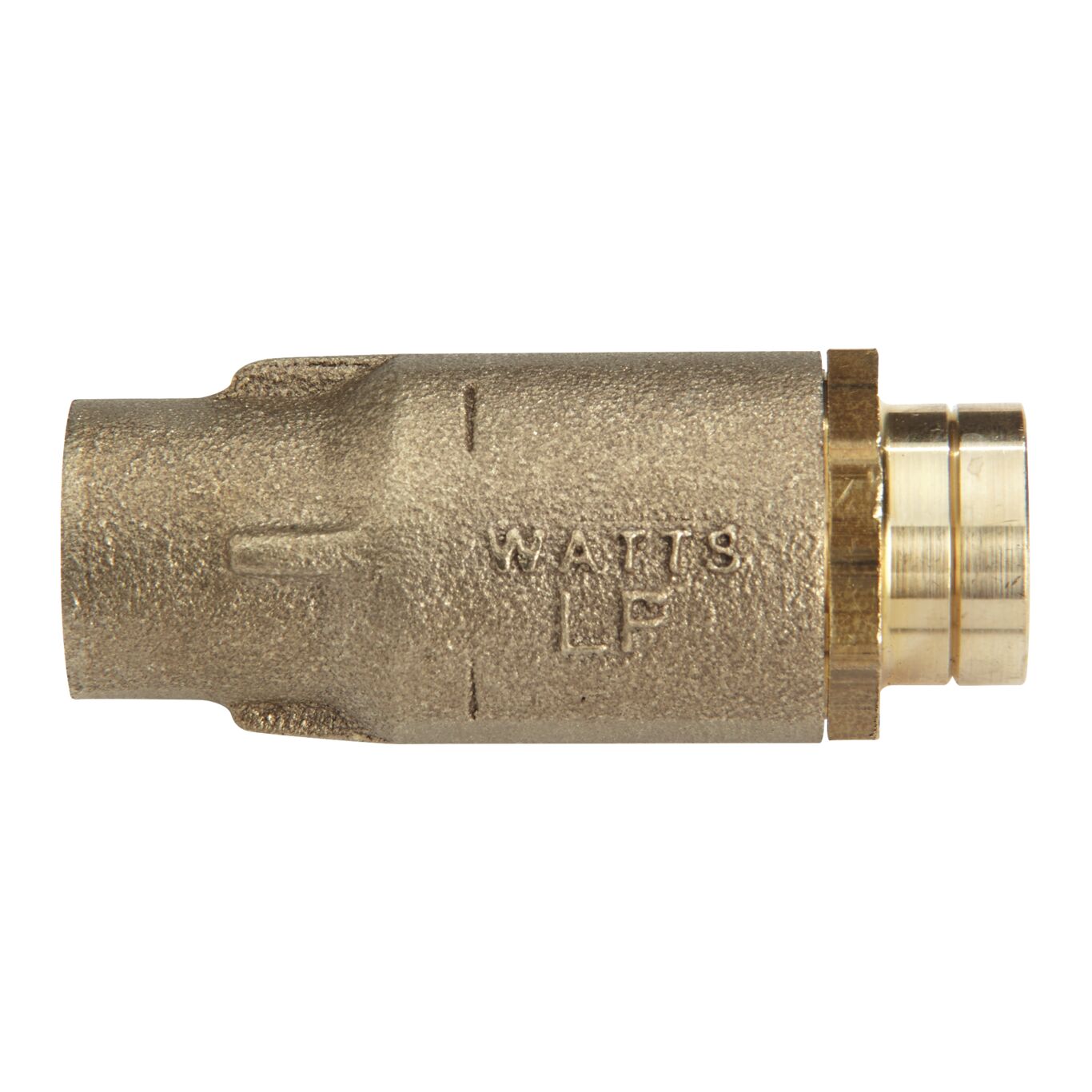

1/2 In Lead Free Brass Silent Check Valve, Viton Disc, Solder End Connections
This 1/2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, Viton (R) disc, and soldered end connections. The maximum pressure rating is 400 psi (27.6 bar), WOG non-shock at 100 degrees F (38 degrees C).
| Specifications | |
|---|---|
| EANUCCCode | 098268432916 |
| MaximumOperatingTemperature-Celsius | 38.00 |
| MaximumOperatingTemperature-Fahrenheit | 100 |
| MaximumWorkingPressure-PSI | 400 |
| MinimumTemperature-Celsius | -29.00 |
| MinimumTemperature-Fahrenheit | -20 |
