LF6 1
×
![]()
Part of the LF6 Series
Ordering Code: 0123070
UPC: 098268653311

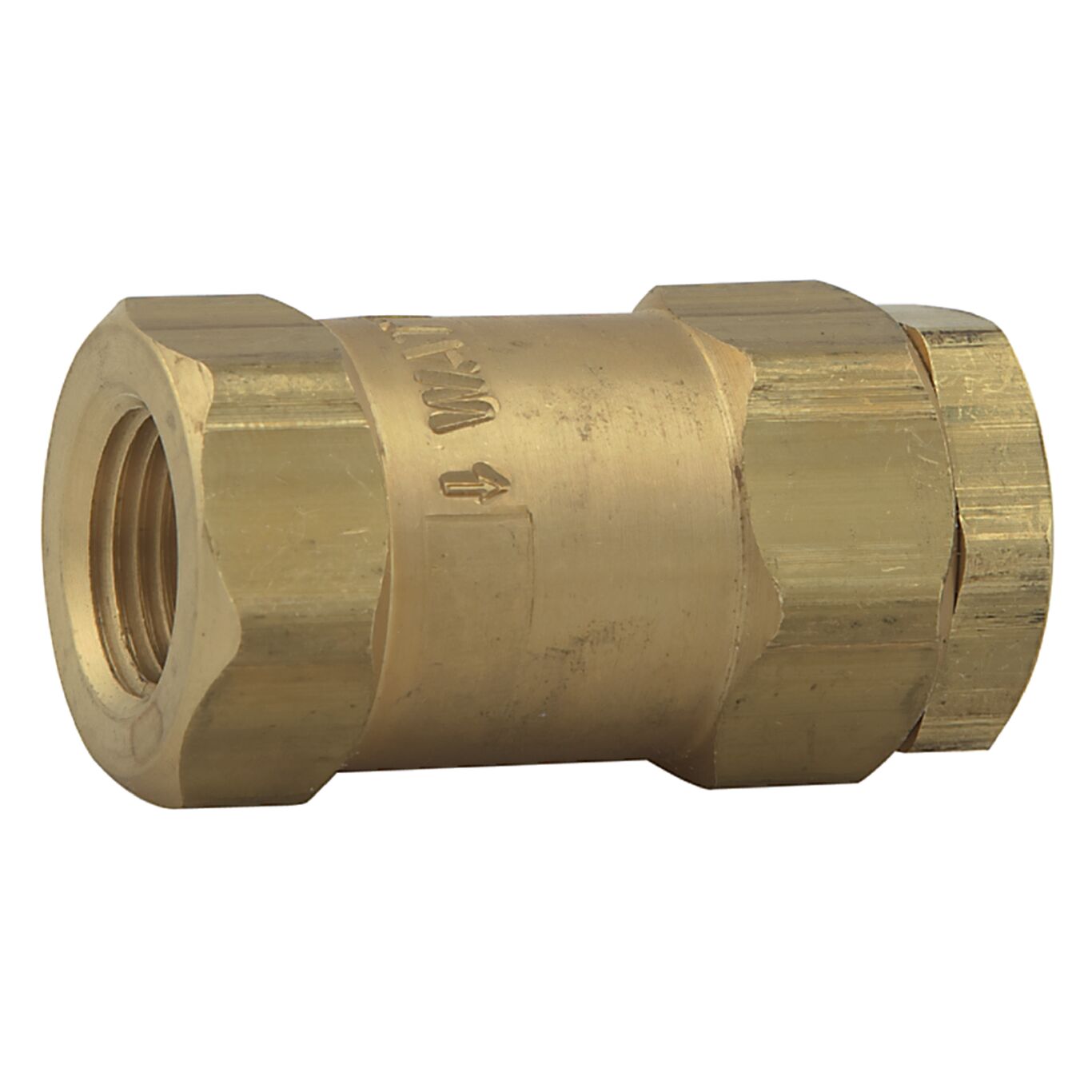

1 In Lead Free Brass Silent Midi Check Valve, Positive Check Module, NPT Female Threaded End Connections
This 1 inch lead free MIDI check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low opening pressure, low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, elastomer seat, NPT female threaded end connections, positive back stop, and a unique positive check module. The maximum pressure is 200 psi (13.8 bar) and the maximum temperature is 180 degrees F (82 degrees C).
| Specifications | |
|---|---|
| EANUCCCode | 098268653311 |
| MaximumOperatingTemperature-Celsius | 82.00 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-PSI | 200 |
| MinimumTemperature-Celsius | -18.00 |
| MinimumTemperature-Fahrenheit | 0 |
