TK-9A
Portable Backflow Preventer Test Kit for RPZAs and DCDAs

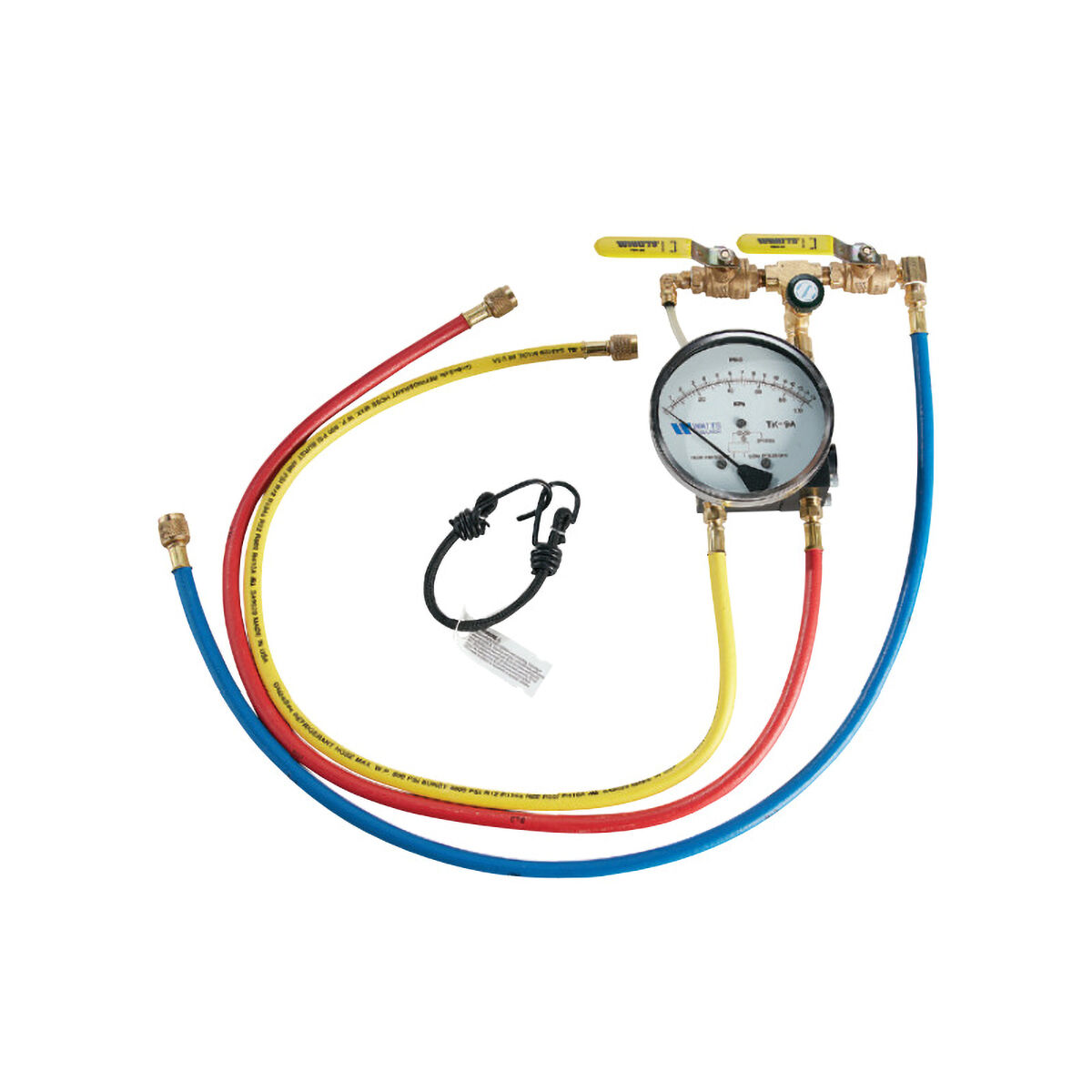

This backflow preventer test kit, model TK-9A, is used for testing reduced pressure zone assemblies, double check valve assemblies, pressure vacuum breakers, and spill-resistant vacuum breakers to USC and ASSE 5000 standards. It is easily connected to any RPZ device enabling accurate testing of zone differential pressure, relief valve opening differential, fouled check valves or similar problems that visual inspections cannot locate. This kit consists of a gauge, test valves, 3 hoses with female-threaded swivel couplings, three adapters, 1 securing strap, and an instruction guide. This compact portable kit fits into an included carrying case for easy handling, accessibility, and storage. Accuracy is +/- 2%. Maximum working pressure is 175 psi (12.06 bar).
Features
- Compact and lightweight hand held test kit for easy use
- Includes 2 ball valves,1 needle valve, and adapter fittings to easily connect to all testable assemblies
- Color-colored hoses for easy identification while testing
- Rugged, weatherproof gauge design
- Gauge accuracy is +/- 2%
- Shock-resistant carrying case for easy handling and access
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
