TK-99E
Analog Test Kit for Pressure and Anti-Spill Vacuum Breakers, RPZA and DCVA Backflow Preventers

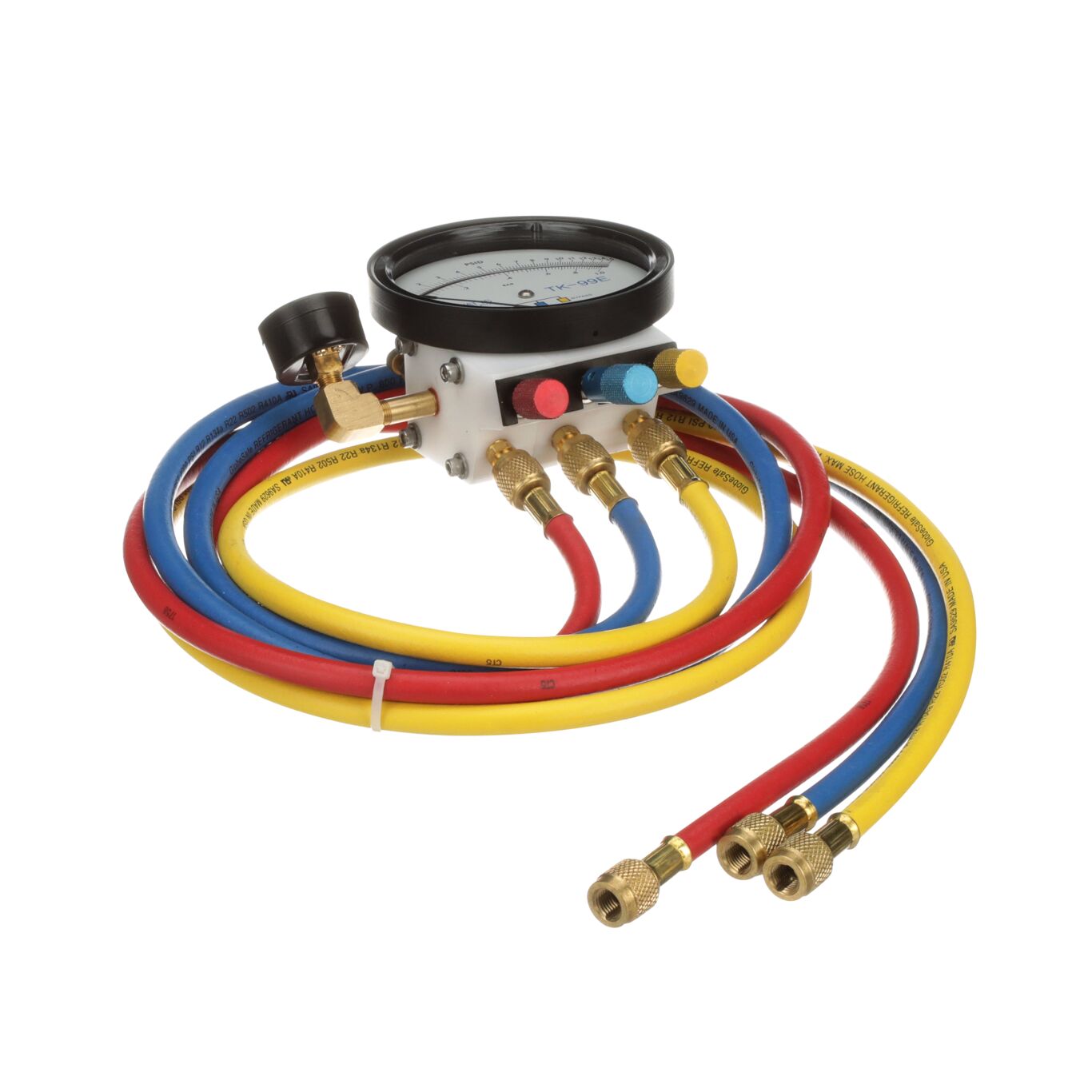

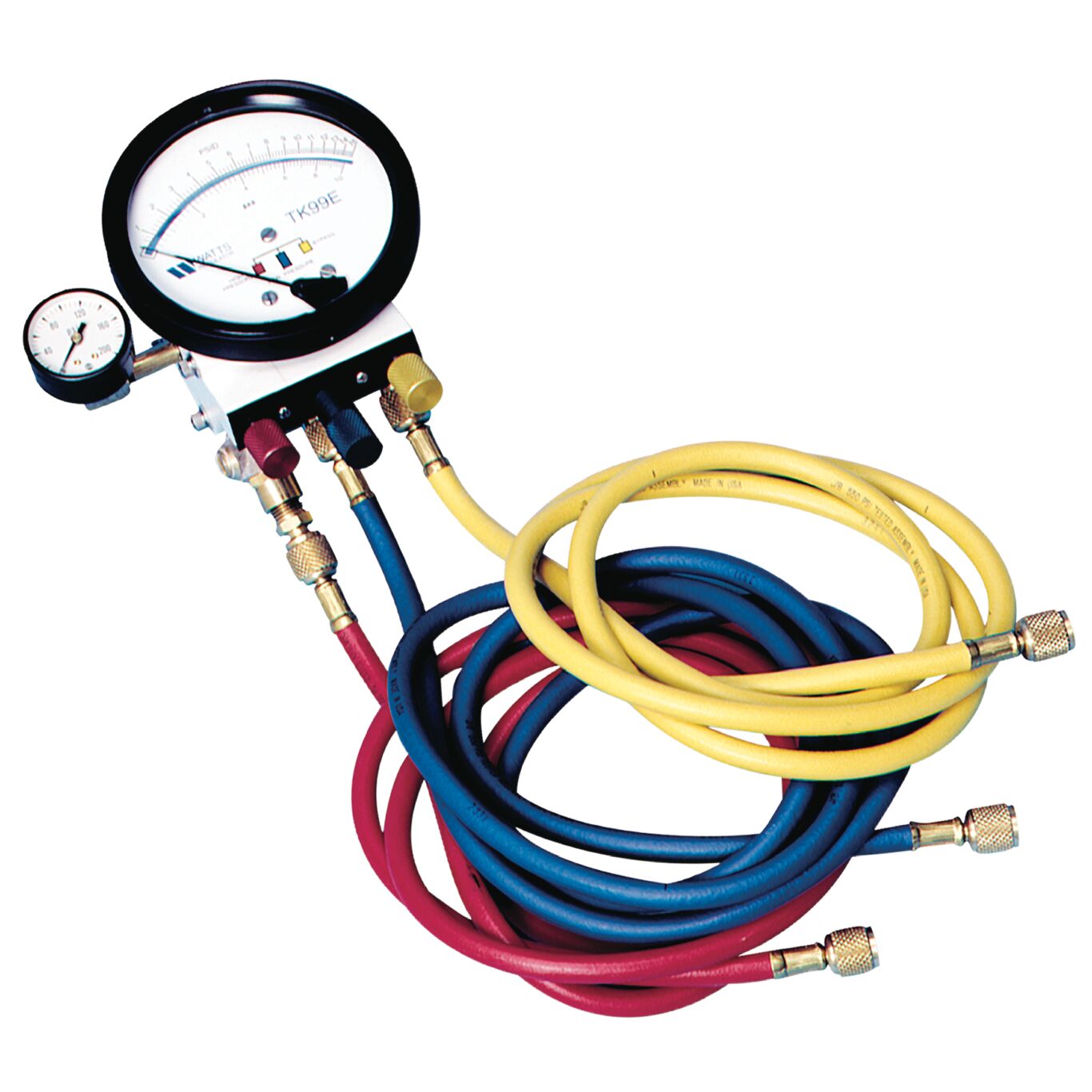

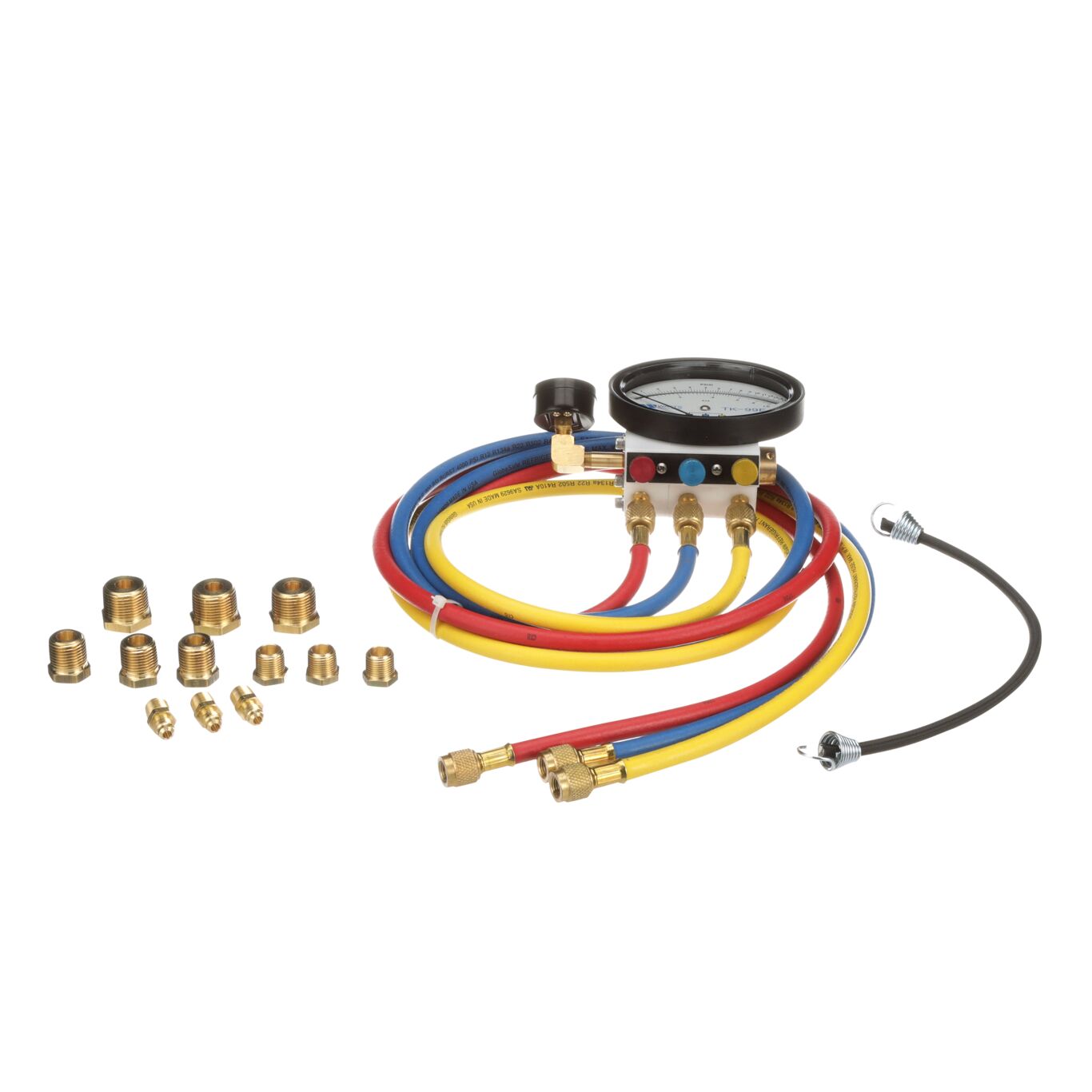

This backflow preventer test kit, model TK-99E, is made for testing pressure vacuum breakers, anti-spill vacuum breakers, reduced pressure zone assemblies, and double check valve assemblies. It is easily connected for accurate testing of differential pressure, air inlet vent opening, pressure drop, and tightness against reverse flow that visual inspections cannot locate. It consists of a gauge with color-coded valves and hoses, hose adapters, shock cord for easy mounting, supply pressure gauge, and carrying case. This compact portable kit is designed for simplified operation and rugged reliability. Accuracy is +/-1% of full scale. Maximum working pressure is 200 psi (13.79 bar).
Features
- Compact and lightweight hand held test kit for easy use
- Includes 3 needle valves, hoses, and adapters to easily connect to all testable assemblies
- Color-coded valves and hoses for easy identification while testing
- 4-1/2 inch diameter face gauge with dual scale
- Pressure gauge measures 0 to 200 psi
- Gauge accuracy is +/- 1%
- Shock-resistant carrying case for easy handling and access
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
