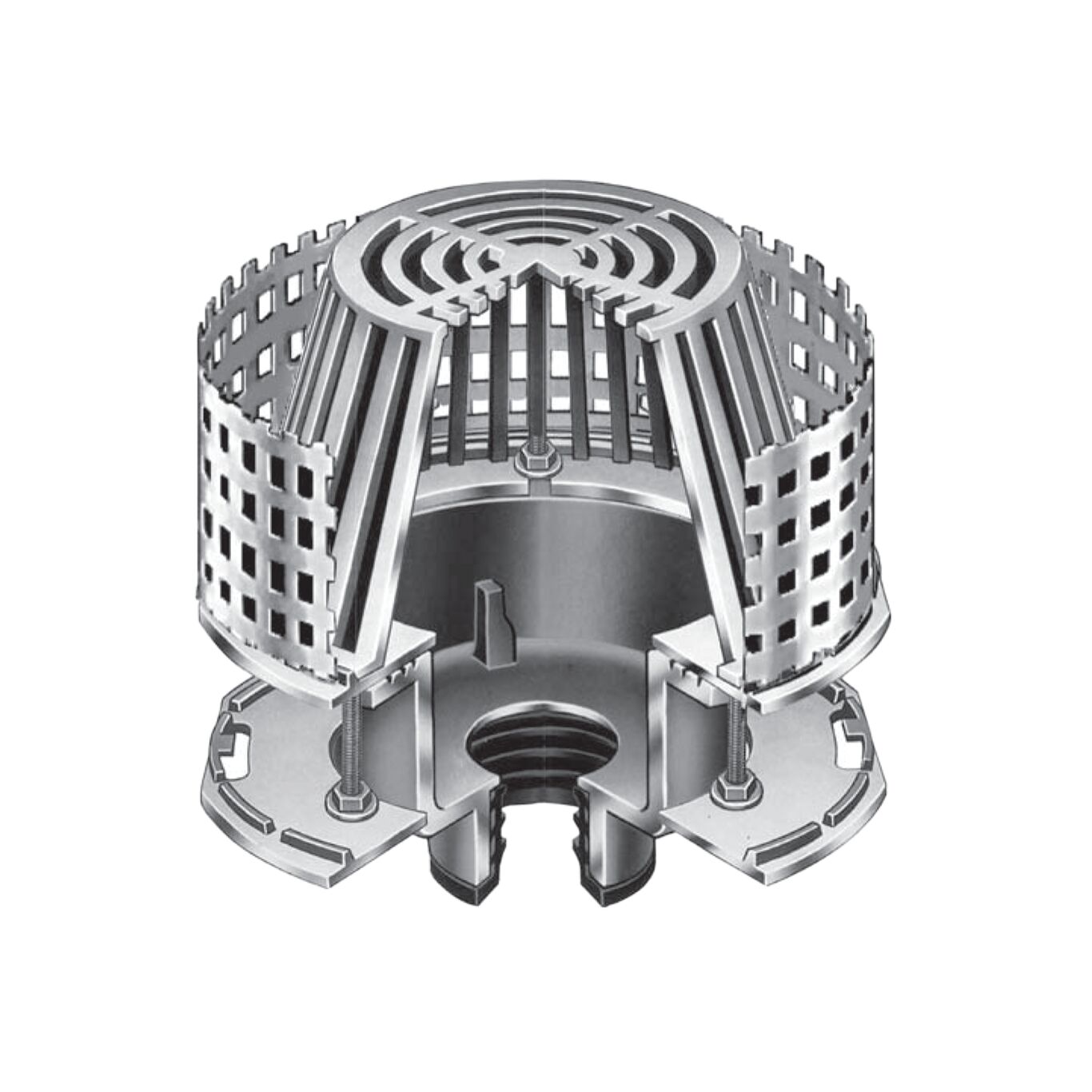

RD-100-GSS
×
![]()
Roof Drain with Stainless Steel Insulation Ballast Guard
Watts Drainage Products RD-100-GSS epoxy coated cast iron roof drain with deep sump, wide serrated flashing flange,membrane clamp, stainless steel 6 in. (152) high ballast guard with 1/2 in. x 1/2 in. (13x13) drainage openings, dome securing ring gravel stop, and self-locking polyethylene dome strainer.
Features
- Industrial grade cast iron roof drain with acid resistant epoxy coating for long life
- Stainless steel 6 in. (152) high ballast guard with drainage openings
- Dome strainer is 8 in. (203) high self-locking polyethylene
- Several pipe sizes, finishes, options, and outlet types available
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
