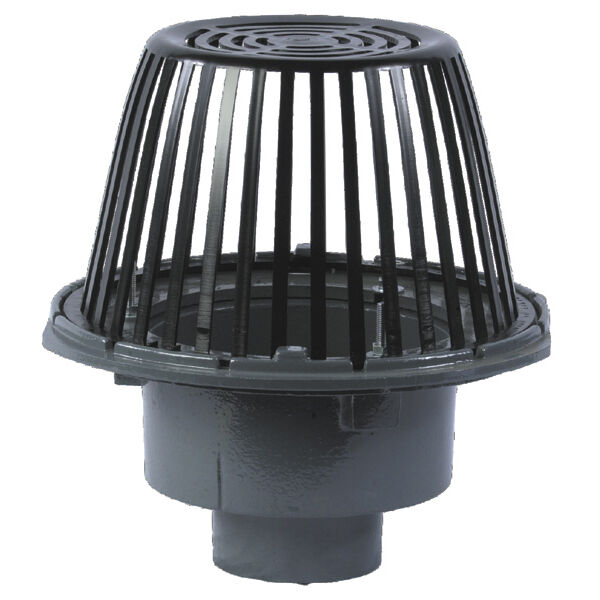

RD-100-A-ADJ
×
![]()
Large Area Roof Drain with Adjustable Flow Control
Watts Drainage Products epoxy coated cast iron Accutrol Weir is designed with a single parabolic opening that can be covered to restrict the flow of rain water above 2 in. of head, to less than five gallons per minute per inch, up to 6 in.
Features
- For flexibility in controlling flow for large sump roof drains
- A parabolic opening can be covered to restrict the rain water flow
- Adjustable Accutrol Weir controls flow rate from 5 to 30 GPM
- Industrial grade cast iron drain with acid resistant epoxy coating for long life
