OI-600 SERIES

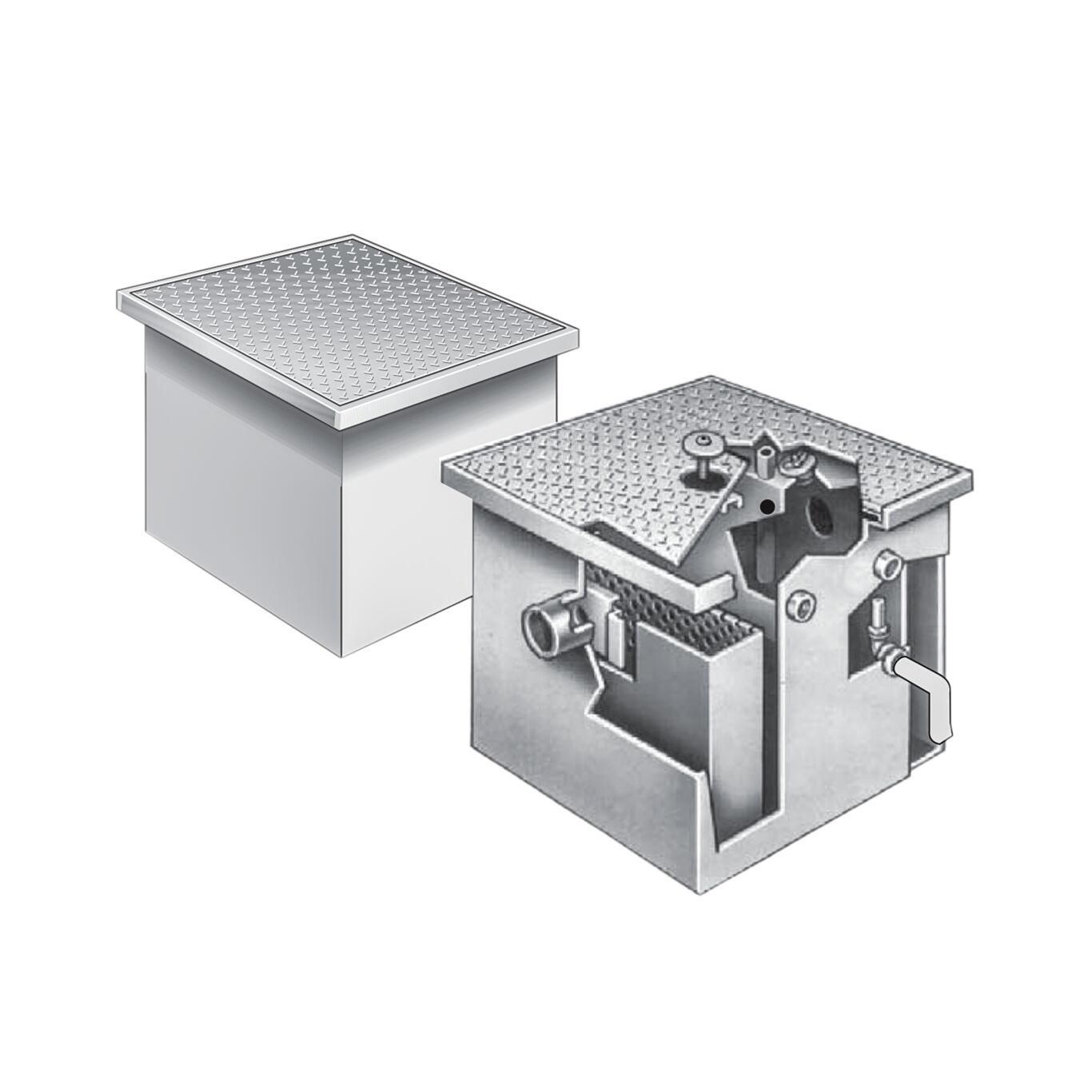

Oil Interceptor on Floor or Semi-Recessed with Storage Tank
Watts Drainage Products OI-600 epoxy coated inside and outside fabricated steel oil Interceptor with flow rating of 100 to 600 GPM. Unit shall include sediment bucket, code approved deep seal trap, cover securing bolt(s), adjustable automatic draw-off assembly, double vent connections, stainless steel calibrated orifice plate and epoxy coated, non skid cover. Secondary storage tank.
Features
- Fabricated steel is epoxy coated inside and outside for smooth finish and long life
- Secondary storage tank requires interconnecting and vent piping by others
- Code approved integral deep seal trap
- 2 in. (51) adjustable automatic draw-off assembly can be installed on either side
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
ASSE | CSA | FM Approvals | NSF |
UL | ULC | USC | WQA |
