TD-300
Elevator Drain

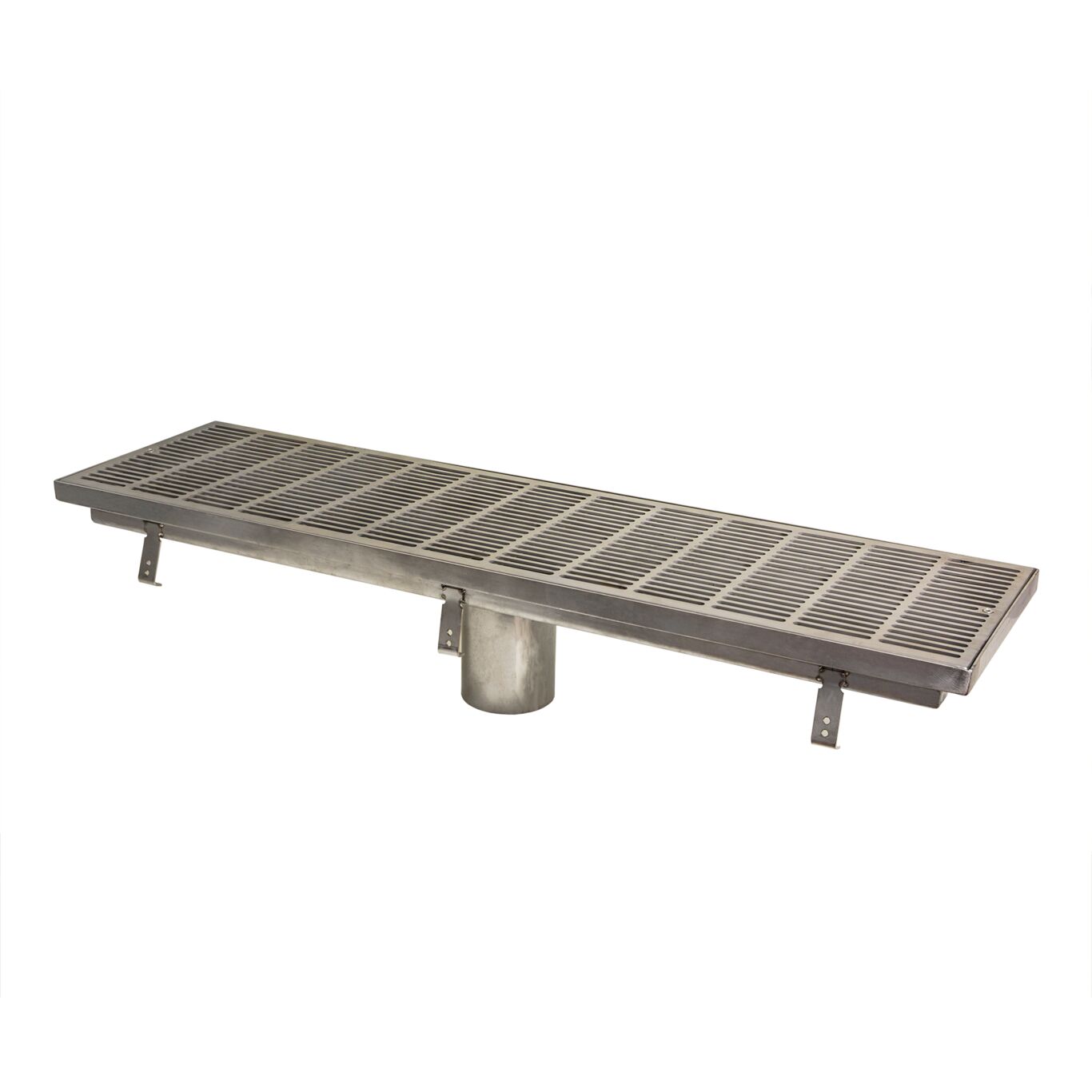

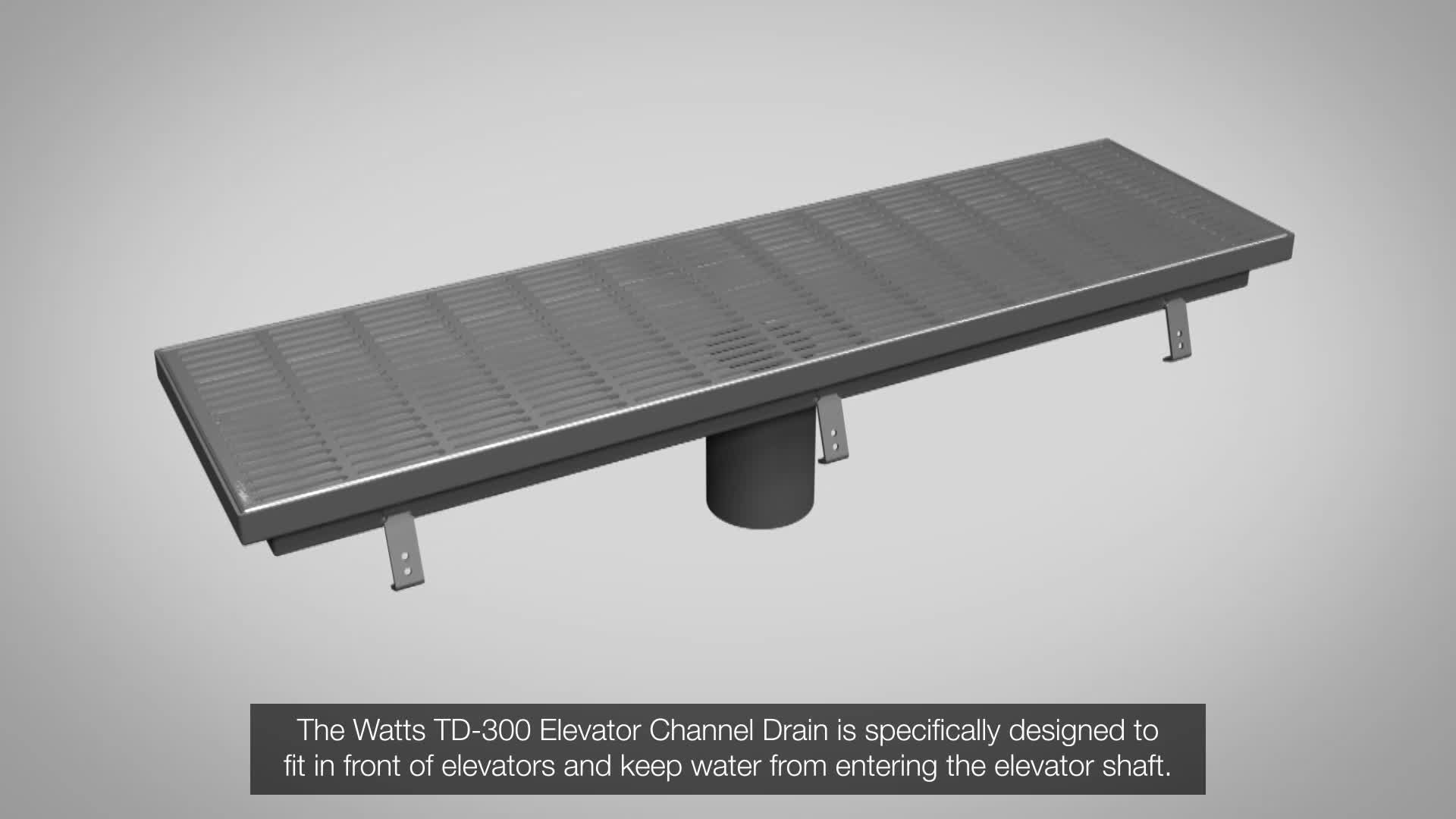

Watts TD-300 Elevator Drain with 11 1/2"(292) wide x (specify) long 12 ga. Type 304 stainless steel body, ADA compliant heel proof stainless steel grating with open area of 65 sq. in. per linear foot, grating secured with vandal proof stainless steel screws, and 4"(102) no hub center outlet.
Features
- Protects elevator shafts from fire sprinkler discharge
- Complies with emerging building code requirements
- Low profile accommodates post-tension slabs
- Stainless steel heel proof grating
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
ASSE | CSA | FM Approvals | NSF |
UL | ULC | USC | WQA |
